Top Hole Layout

from $50.00

Select a top hole layout that fits your workflow. A top hole configuration must be included with your cart order. The cutouts are sized for the rinser, knockbox, and sink/faucet.

Rinser, Knockbox, Cord/Hose

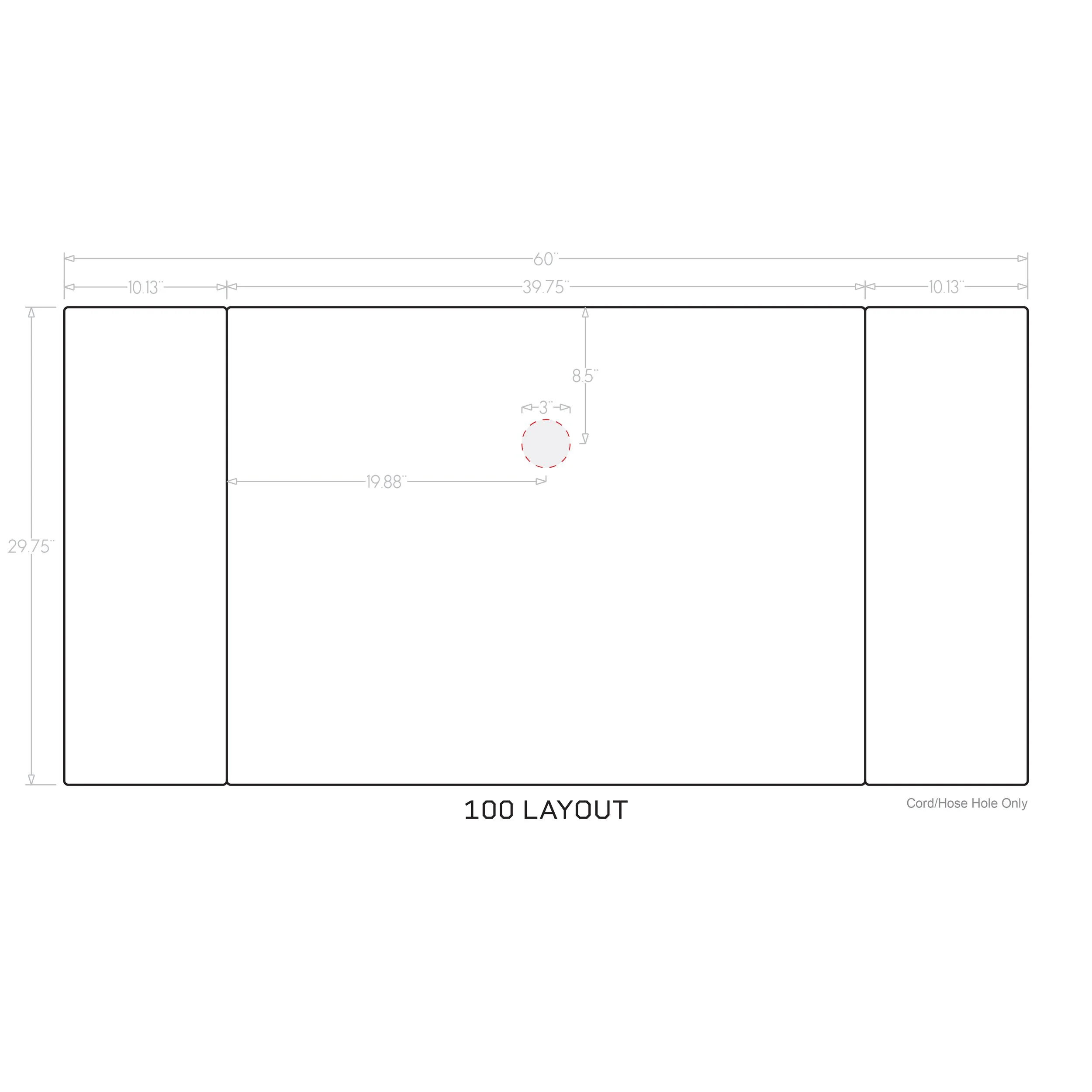

  • 100- cord/hose center

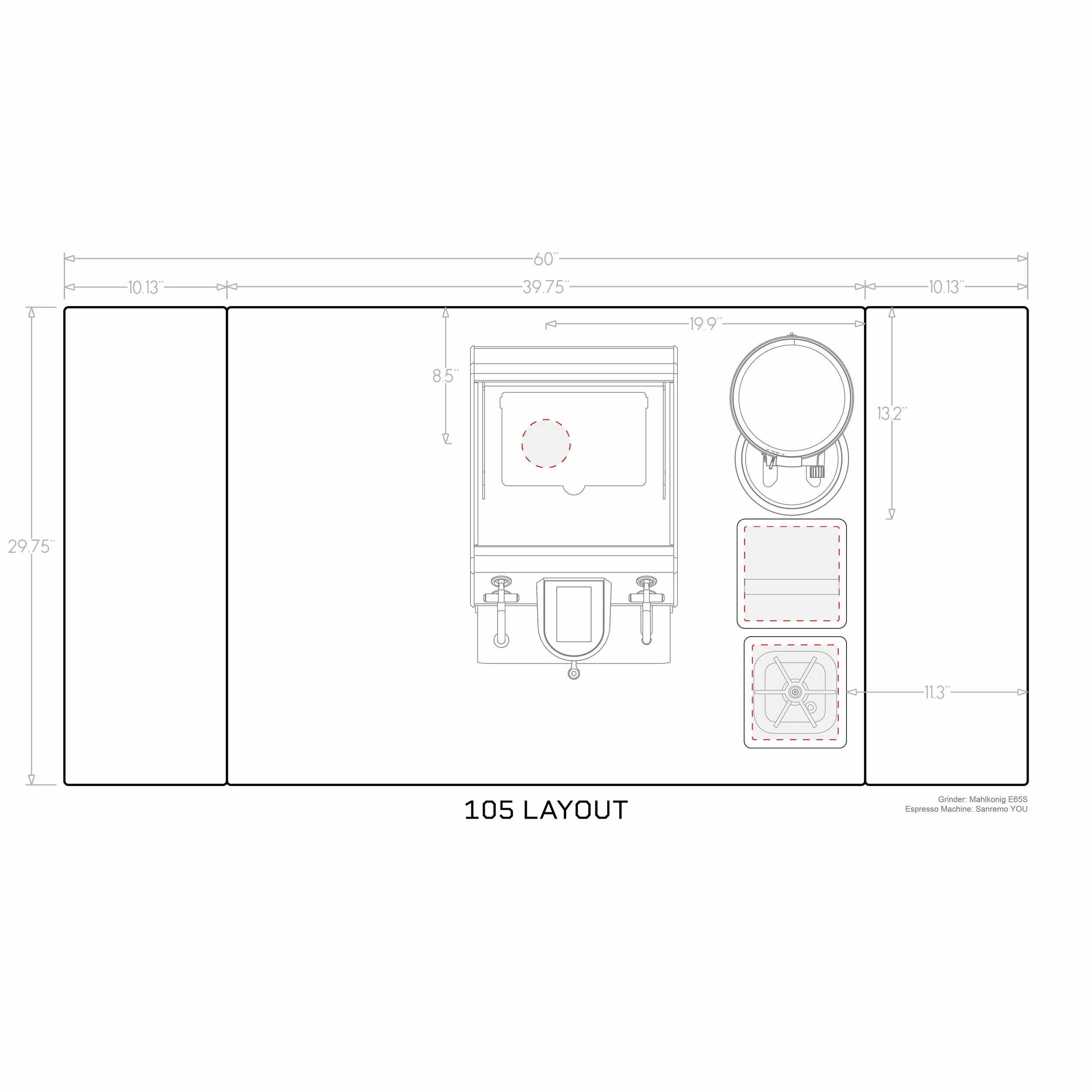

  • 105- rinser and knockbox on right, cord/hose center

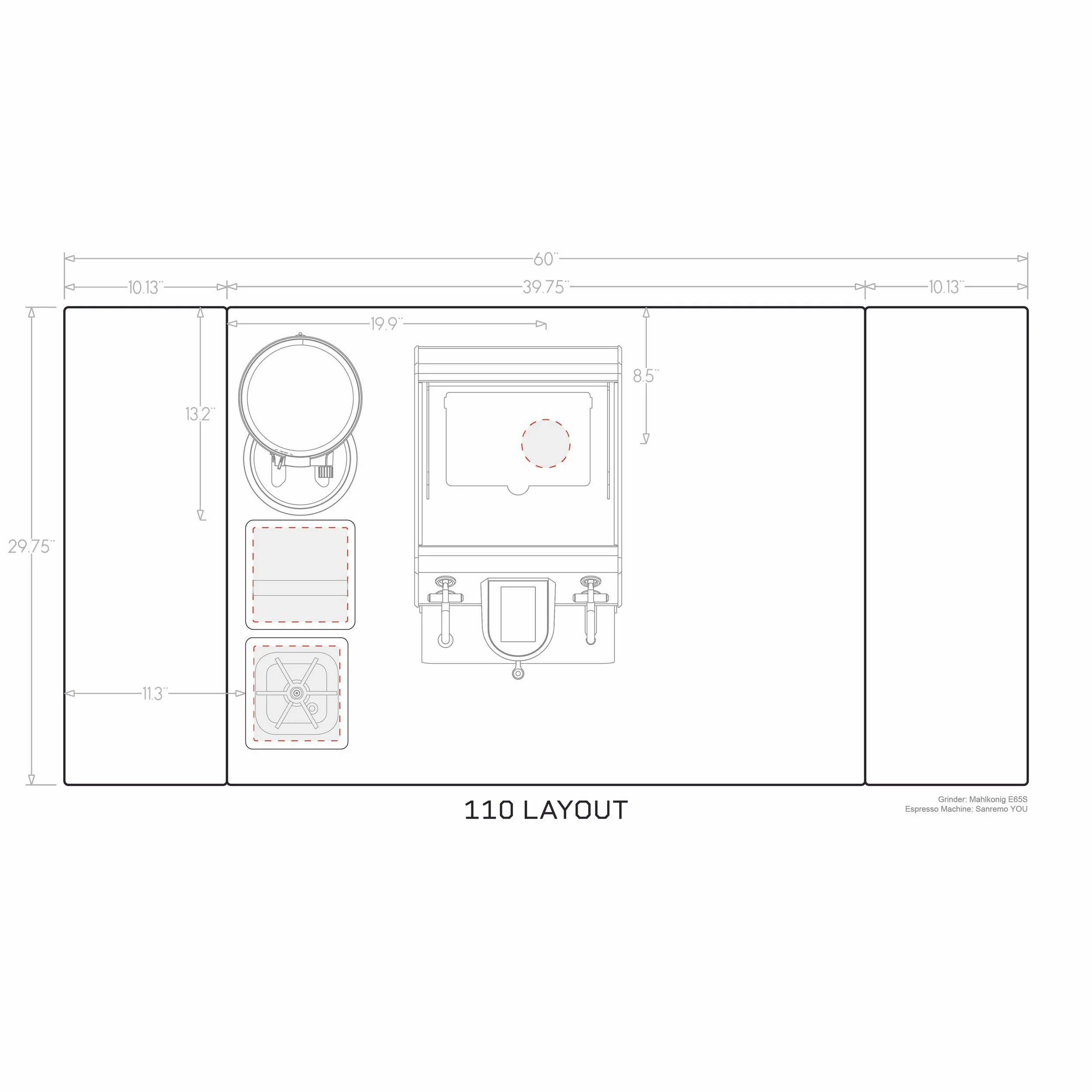

  • 110- rinser and knockbox on left, cord/hose center

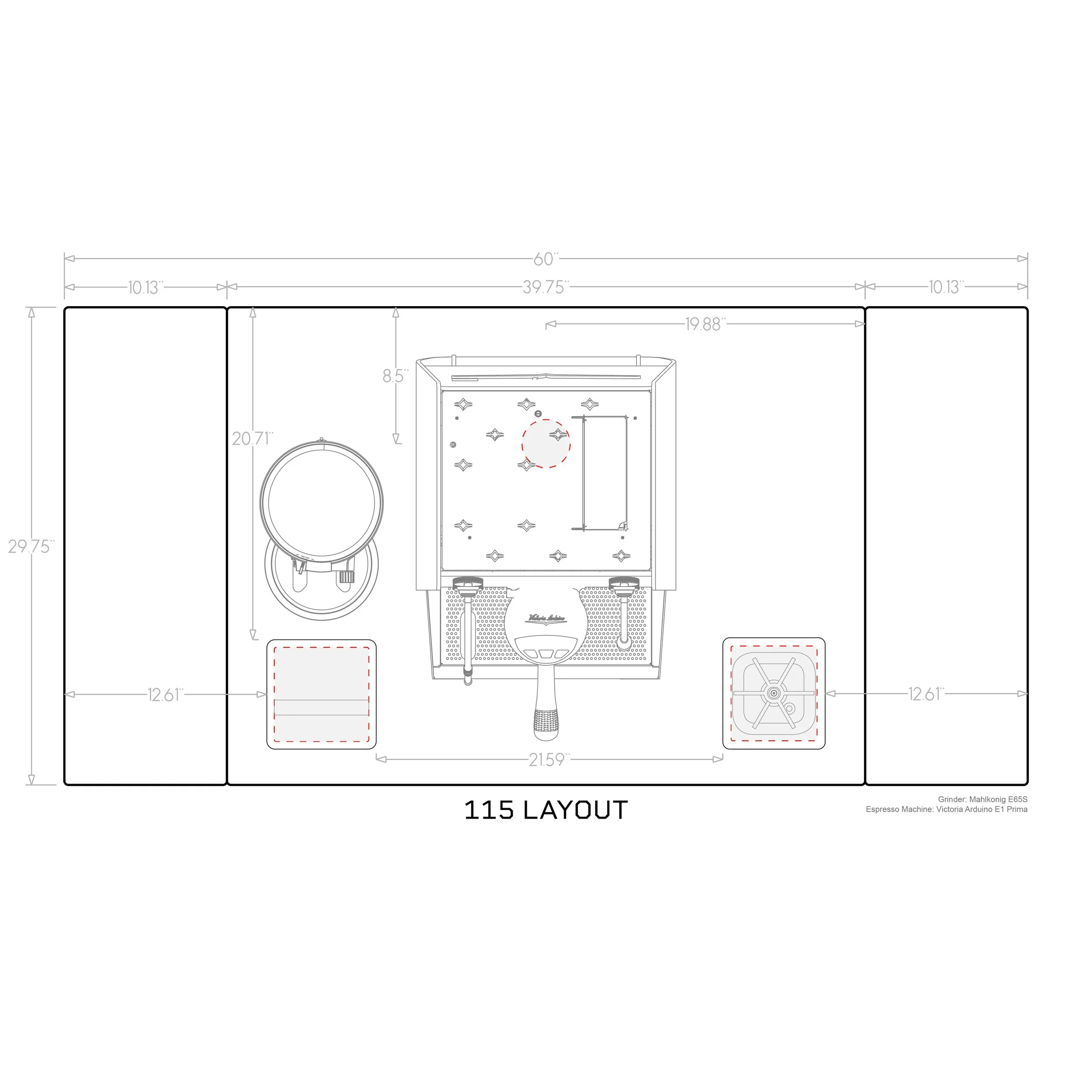

  • 115- rinser on right, knockbox on left, cord/hose center

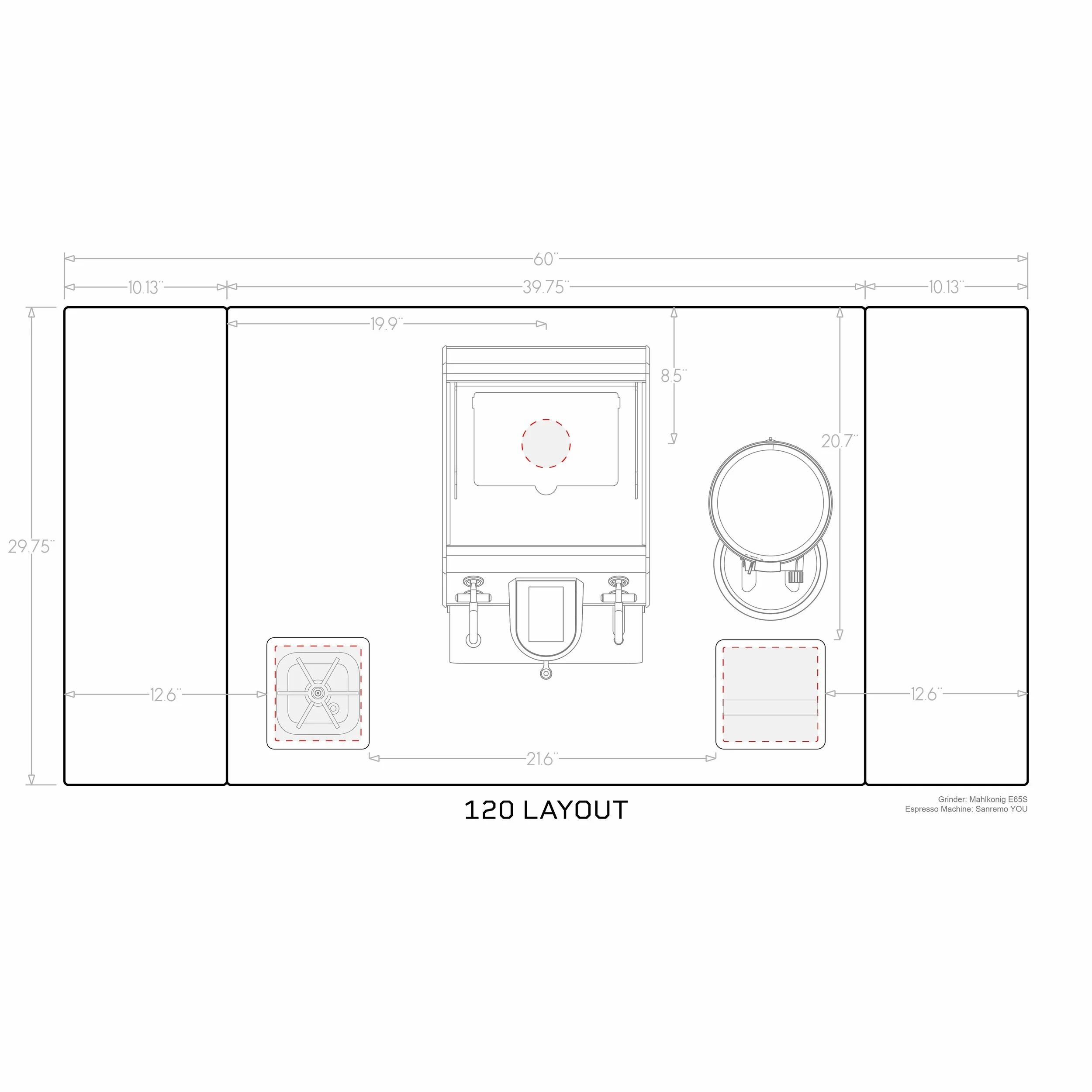

  • 120- rinser on left, knockbox on right, cord/hose center

Sink/Faucet, Rinser, Knockbox, Cord/Hose

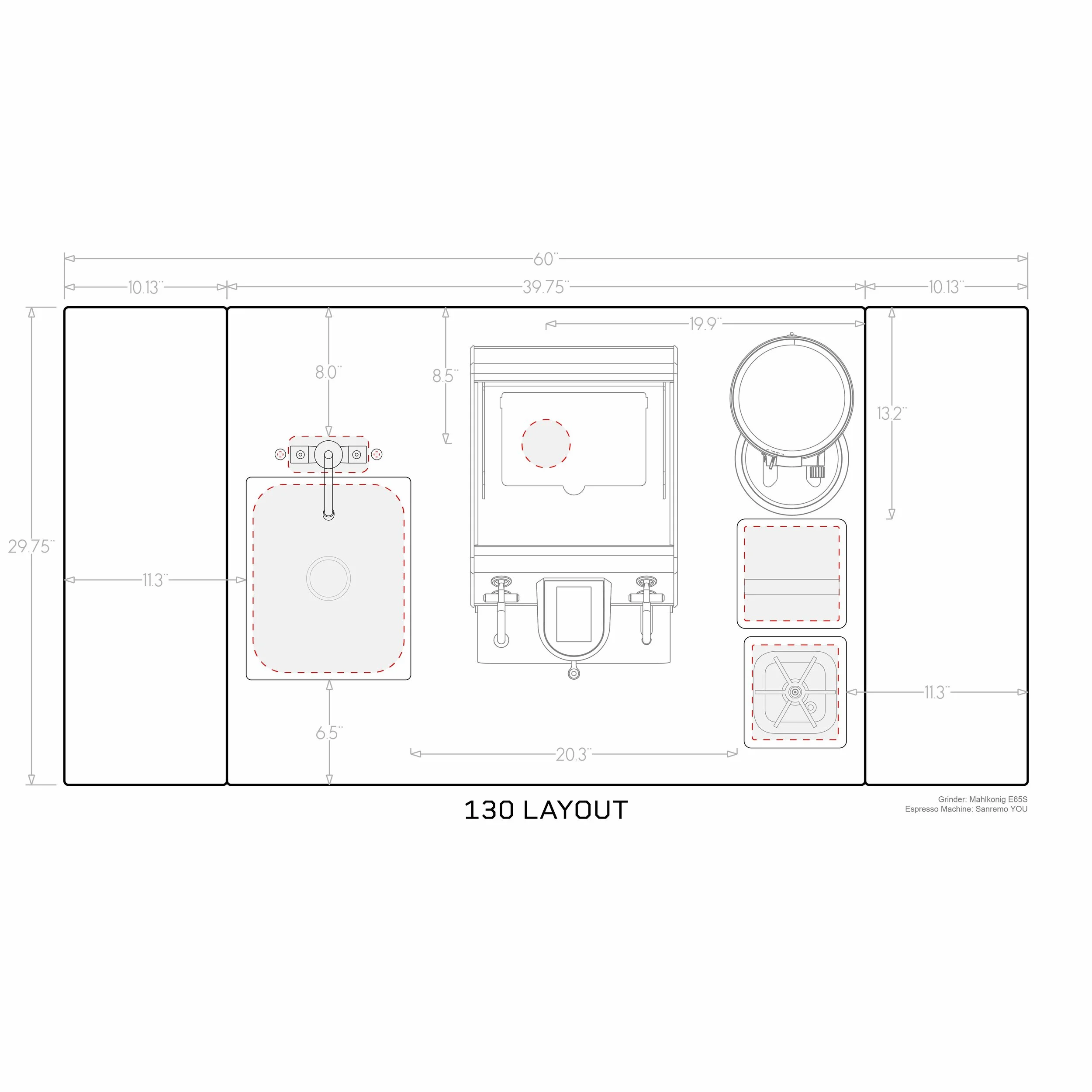

  • 130- rinser and knockbox on right, cord/hose center, sink/faucet on left

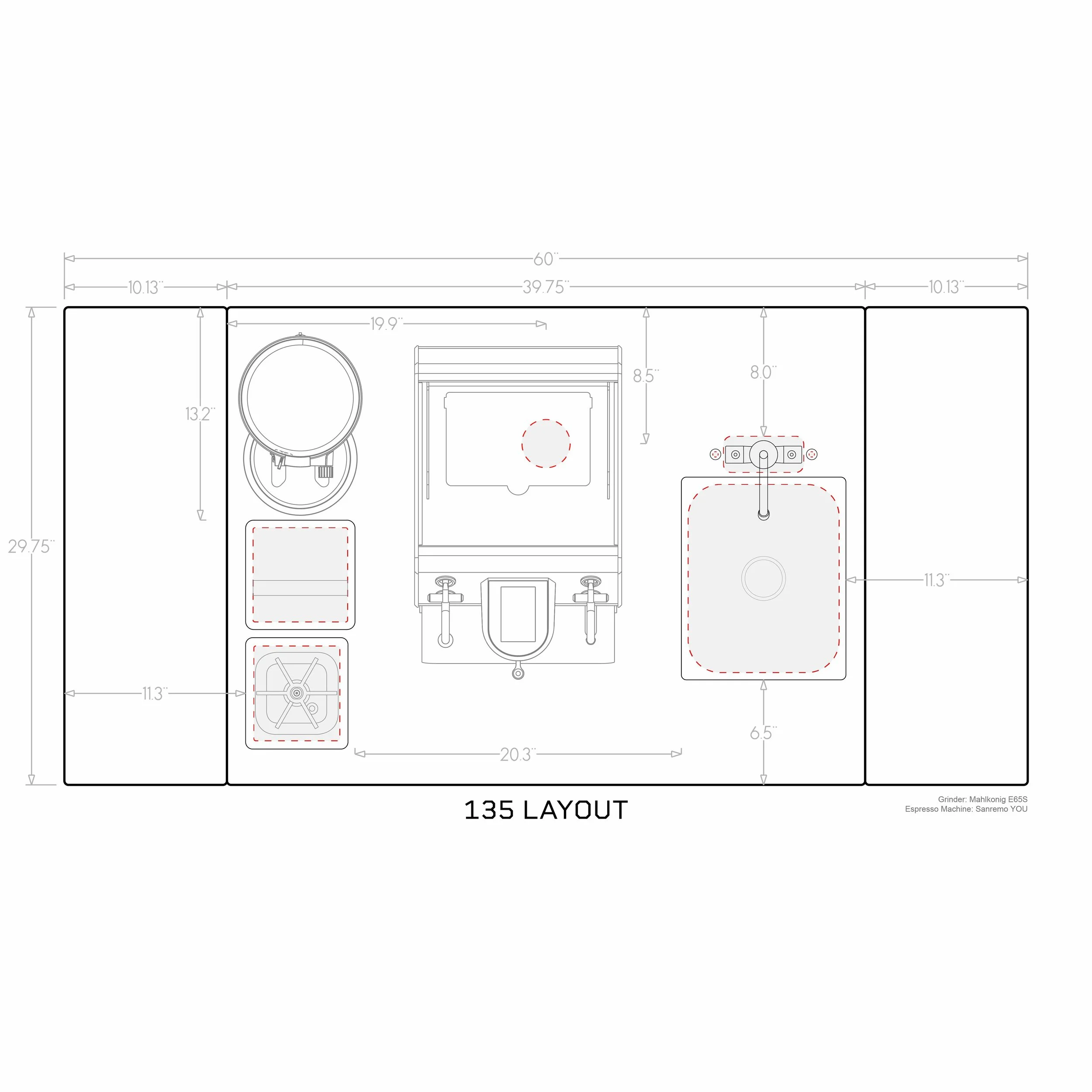

  • 135- rinser and knockbox on left, cord/hose center, sink/faucet on right

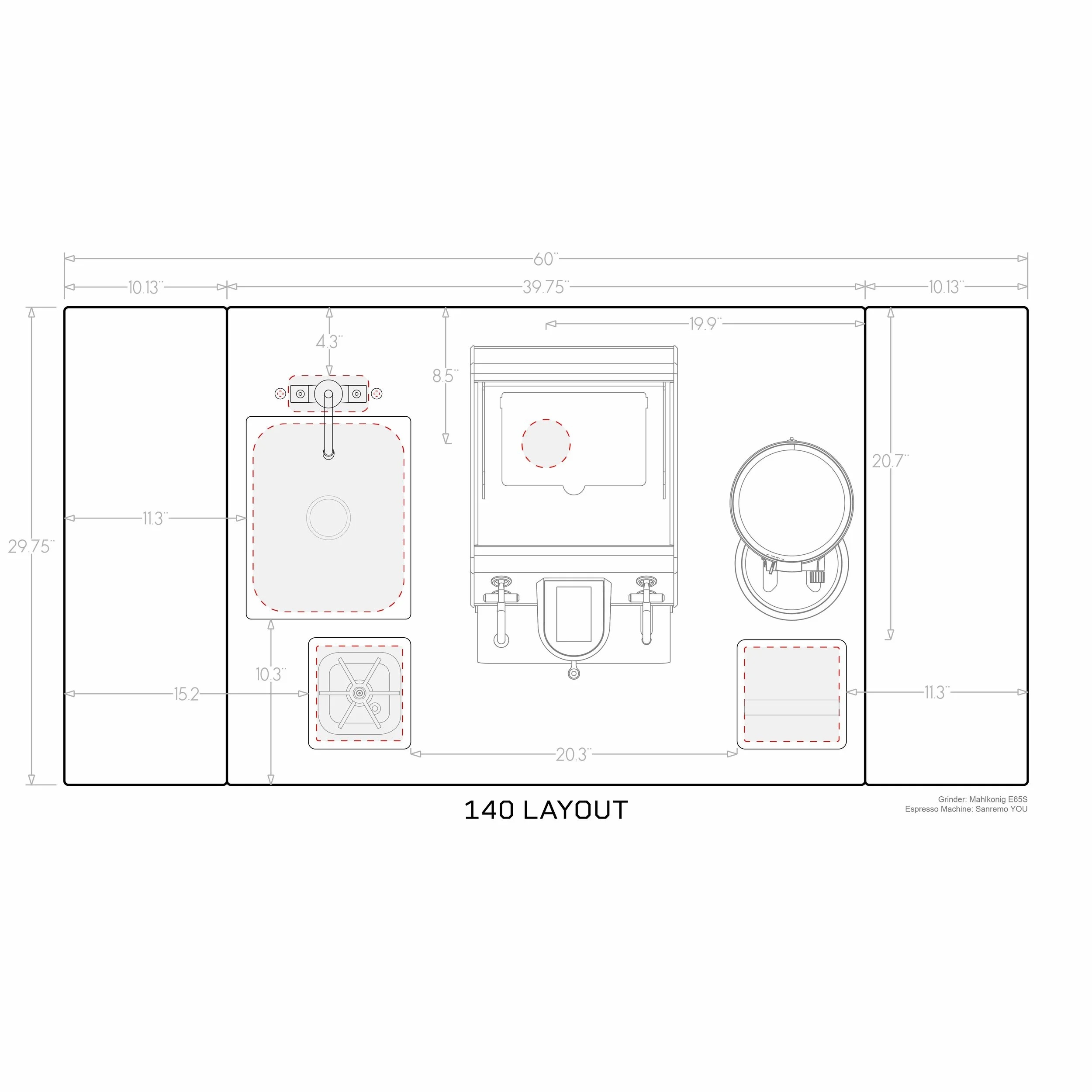

  • 140- rinser and sink/faucet on left, cord/hose center, knockbox on right

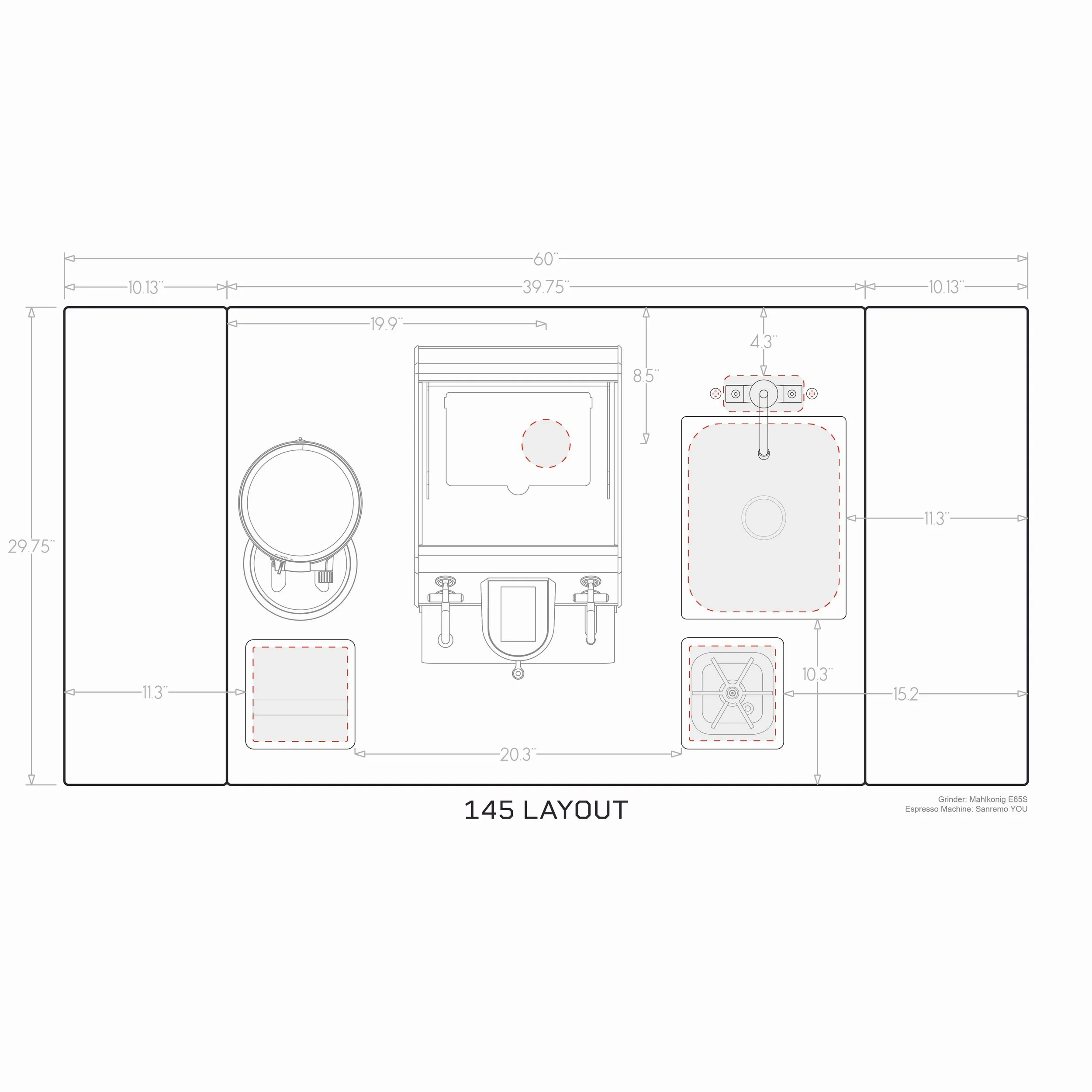

  • 145- rinser and sink/faucet on right, cord/hose center, knockbox on left

Special Layouts

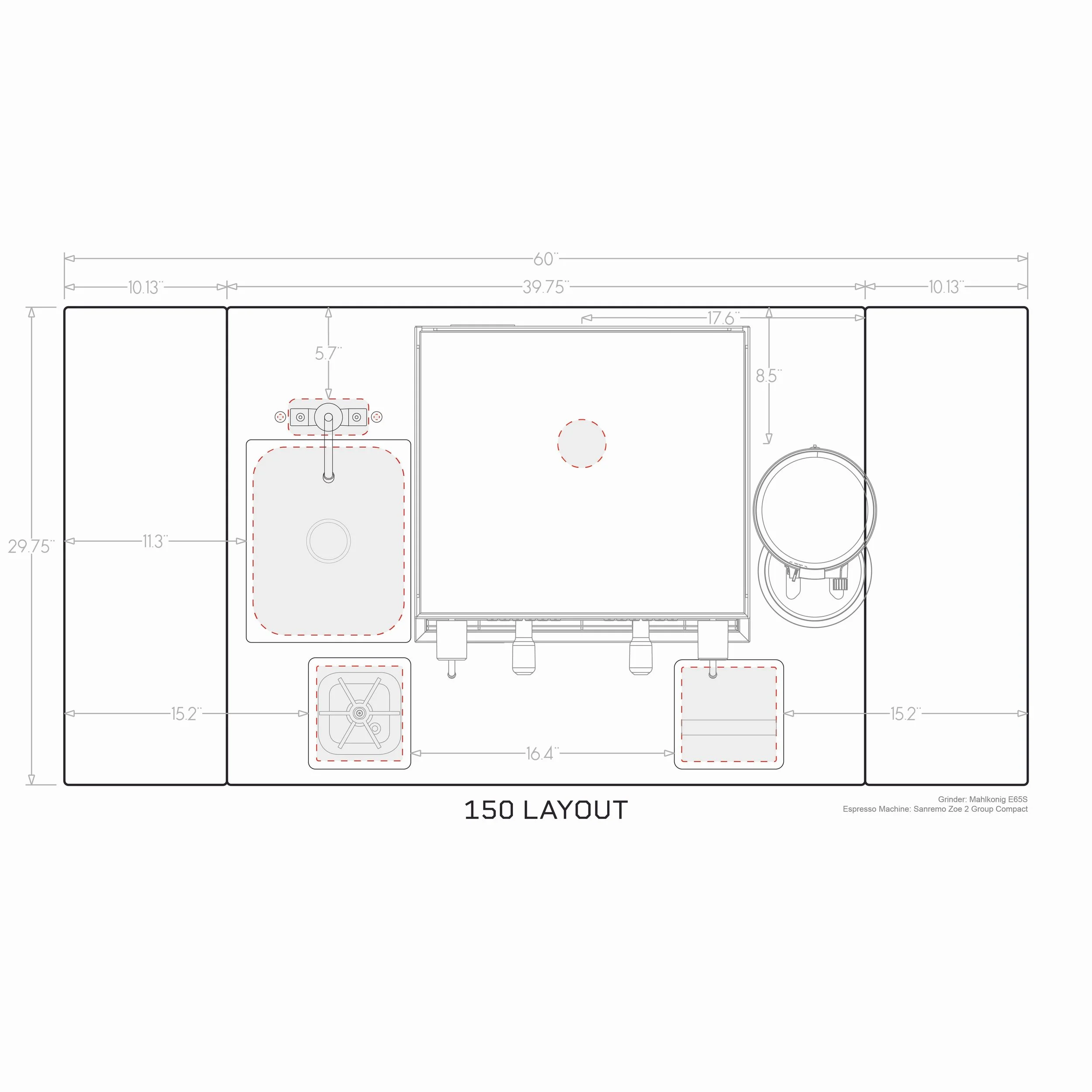

  • 150- rinser and sink/faucet on left, cord/hose, knockbox on right (optimized for Sanremo Zoe or similar)

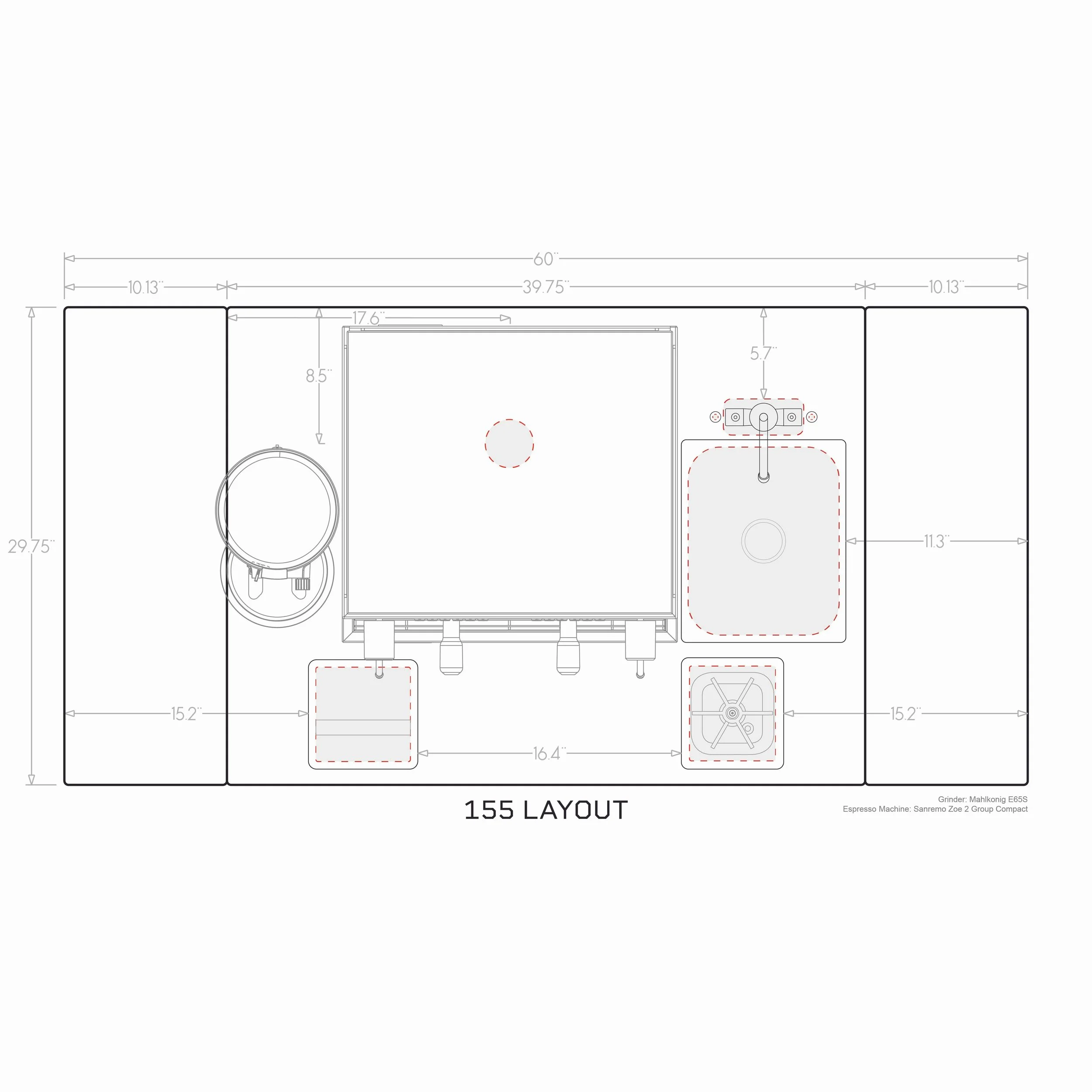

  • 155- rinser and sink/faucet on right, cord/hose, knockbox on left (optimized for Sanremo Zoe or similar)

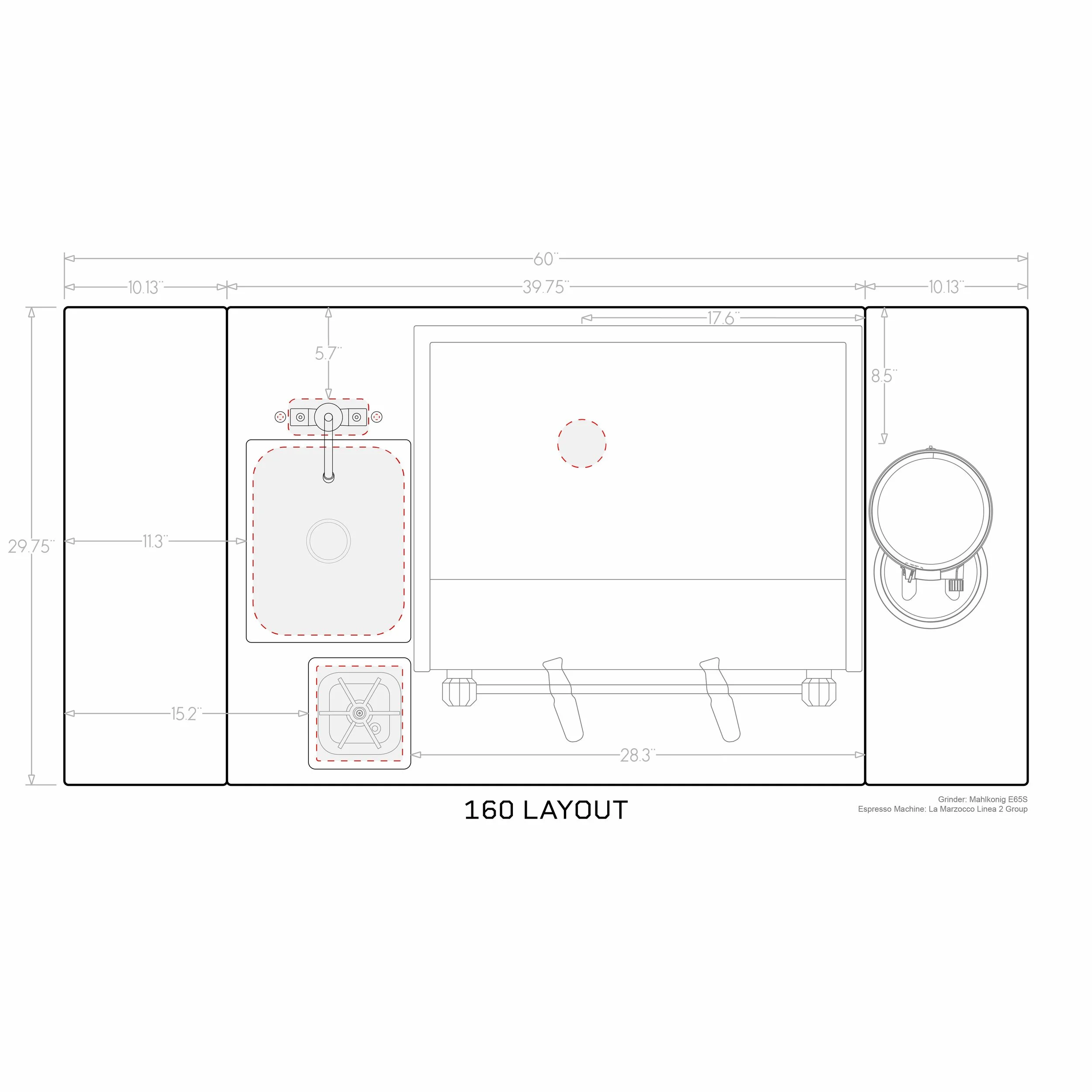

  • 160- rinser and sink/faucet on left, cord/hose, (optimized for La Marzocco 2 group or similar)

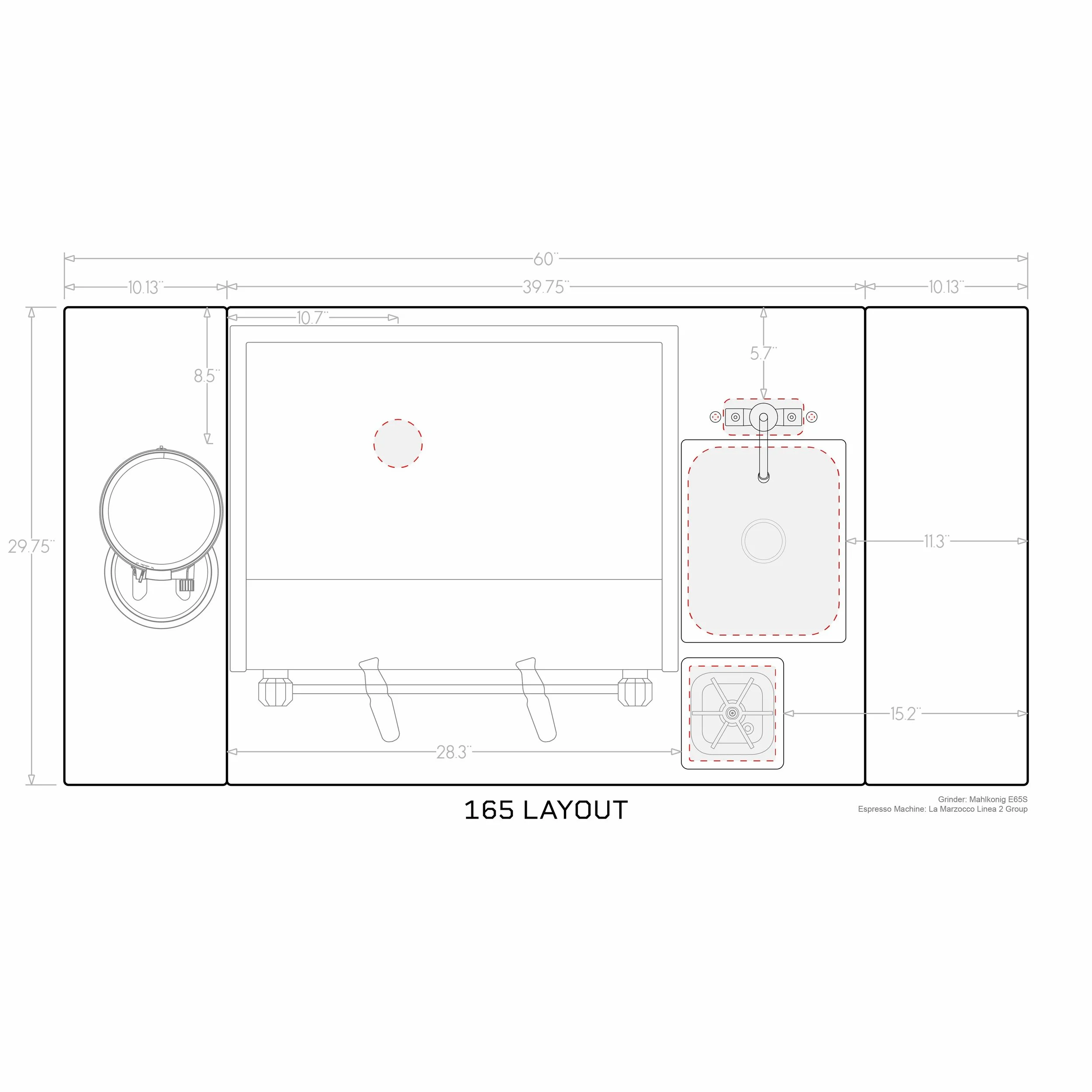

  • 165- rinser and sink/faucet on right, cord/hose, (optimized for La Marzocco 2 group or similar)

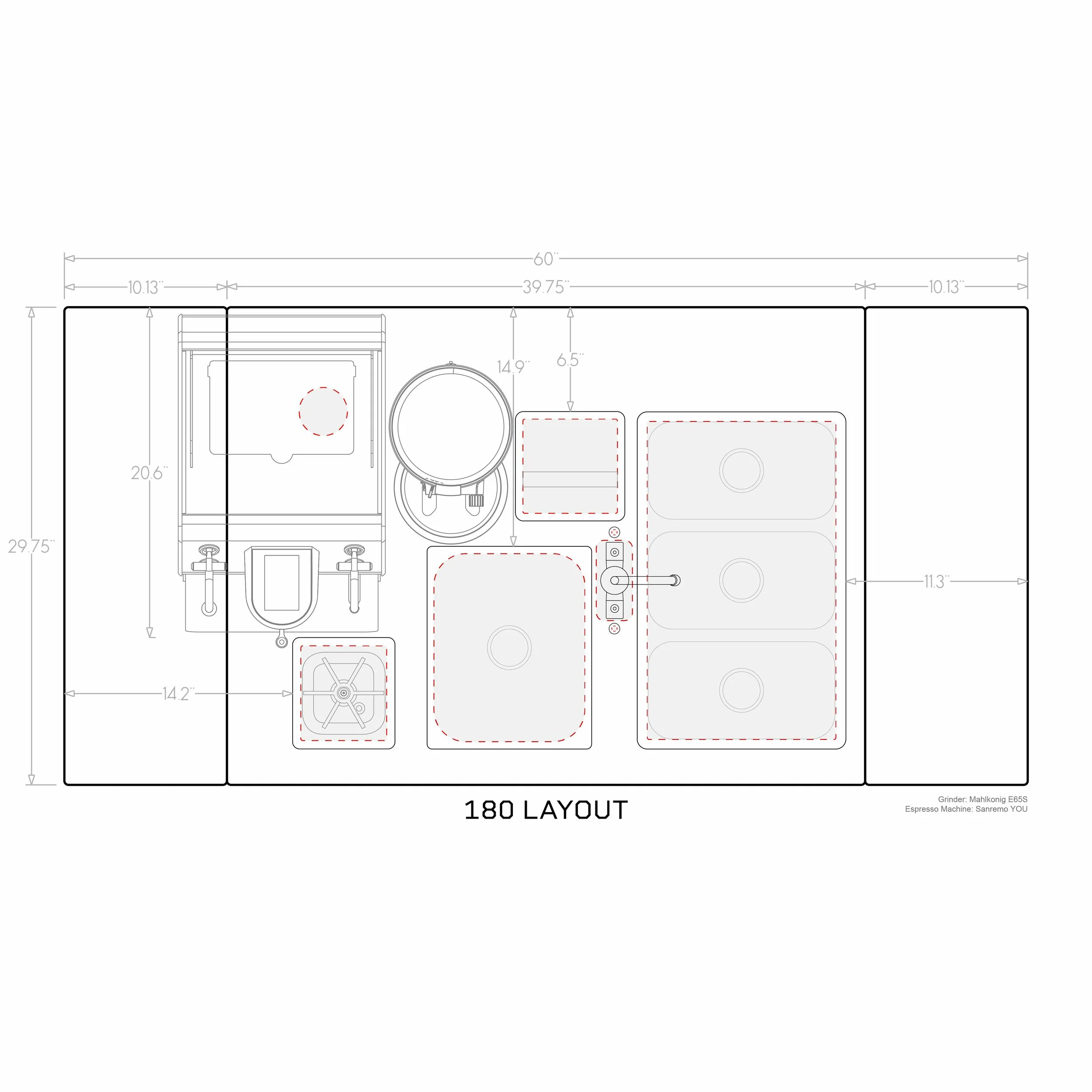

  • 180- rinser, sink/faucet, knockbox, cord/hose, 3 compartment sink

Custom Configurations

  • Eliminating a cutout- We can eliminate a cutout from any of our standard layouts. Additional cost: $50 (invoiced separately, requires a standard layout as a base)

  • Placement tweaks- We can usually shift the standard cutouts within the layout. Additional cost: $100 (invoiced separately, requires a standard layout as a base)

  • Umbrella- We can add a hole to most layouts for a standard umbrella. There will be a corresponding hole in the interior shelf to hold the umbrella in place. Additional cost: $100 (invoiced separately, requires a standard layout as a base) If you would like to add an umbrella hole, reach out to us after placing your order.

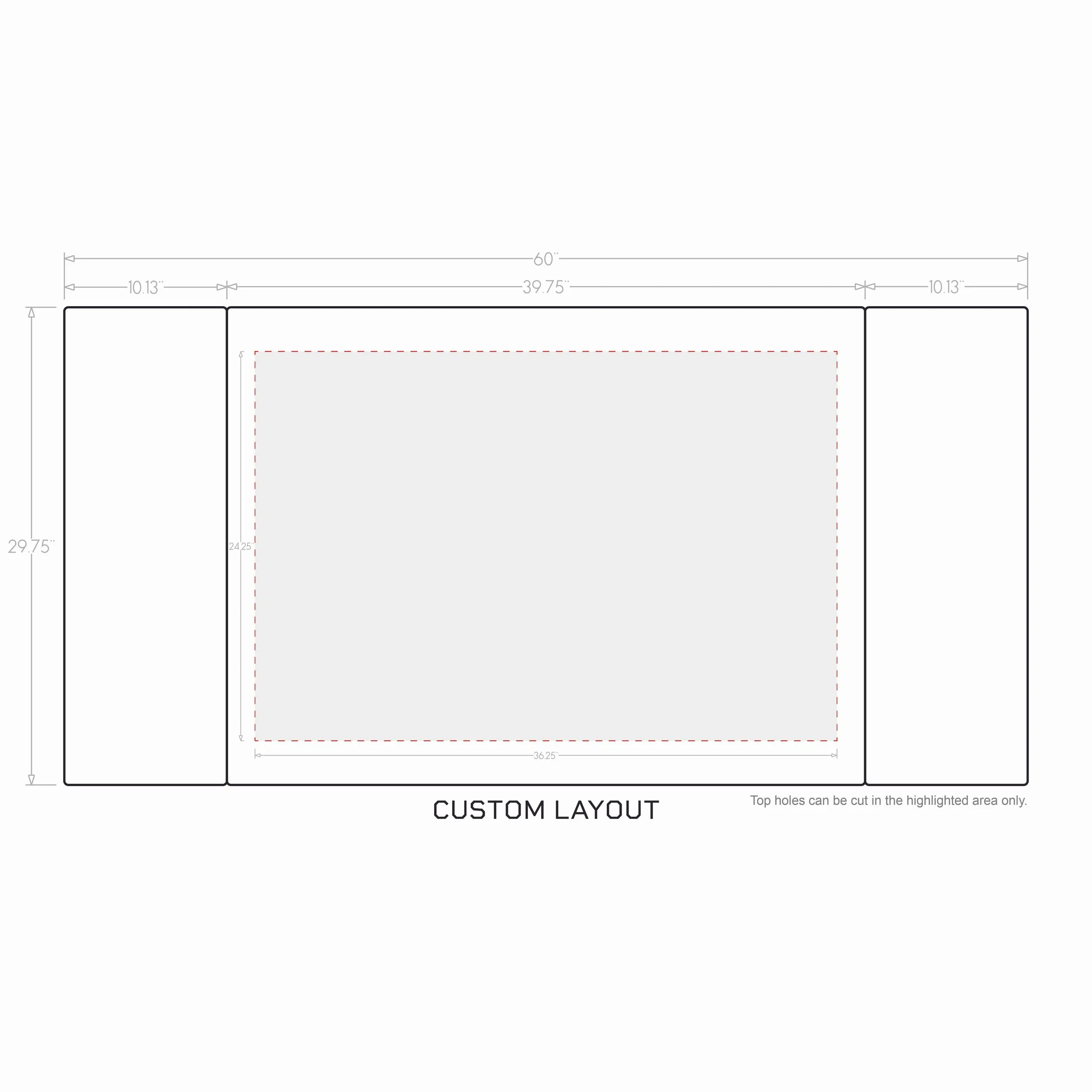

  • Custom hole size and placement- It’s your canvas. Tell us your vision. (Purchase the custom layout option and we’ll reach out for more information)

End

Download All Top Layouts

Top Hole Layout:

Select a top hole layout that fits your workflow. A top hole configuration must be included with your cart order. The cutouts are sized for the rinser, knockbox, and sink/faucet.

Rinser, Knockbox, Cord/Hose

  • 100- cord/hose center

  • 105- rinser and knockbox on right, cord/hose center

  • 110- rinser and knockbox on left, cord/hose center

  • 115- rinser on right, knockbox on left, cord/hose center

  • 120- rinser on left, knockbox on right, cord/hose center

Sink/Faucet, Rinser, Knockbox, Cord/Hose

  • 130- rinser and knockbox on right, cord/hose center, sink/faucet on left

  • 135- rinser and knockbox on left, cord/hose center, sink/faucet on right

  • 140- rinser and sink/faucet on left, cord/hose center, knockbox on right

  • 145- rinser and sink/faucet on right, cord/hose center, knockbox on left

Special Layouts

  • 150- rinser and sink/faucet on left, cord/hose, knockbox on right (optimized for Sanremo Zoe or similar)

  • 155- rinser and sink/faucet on right, cord/hose, knockbox on left (optimized for Sanremo Zoe or similar)

  • 160- rinser and sink/faucet on left, cord/hose, (optimized for La Marzocco 2 group or similar)

  • 165- rinser and sink/faucet on right, cord/hose, (optimized for La Marzocco 2 group or similar)

  • 180- rinser, sink/faucet, knockbox, cord/hose, 3 compartment sink

Custom Configurations

  • Eliminating a cutout- We can eliminate a cutout from any of our standard layouts. Additional cost: $50 (invoiced separately, requires a standard layout as a base)

  • Placement tweaks- We can usually shift the standard cutouts within the layout. Additional cost: $100 (invoiced separately, requires a standard layout as a base)

  • Umbrella- We can add a hole to most layouts for a standard umbrella. There will be a corresponding hole in the interior shelf to hold the umbrella in place. Additional cost: $100 (invoiced separately, requires a standard layout as a base) If you would like to add an umbrella hole, reach out to us after placing your order.

  • Custom hole size and placement- It’s your canvas. Tell us your vision. (Purchase the custom layout option and we’ll reach out for more information)

End

Download All Top Layouts




Workflow is one of the most important aspects of a mobile cart.

  • It is crucial to maximize the space and keep the work area clean and functional.

  • We offer a number of configurations that have been tested and proven in the industry.

  • Whether you need a sink (or not) is dependant on 3 things.

    Health code: Many health departments require hot water and a handwashing sink.

    Convenience: Regardless of requirements, a sink and faucet are very nice as a water source and for cleanup.

    Keep it simple: Doing private events where there is a sink close by? In this case you may not need a sink on the cart and the space can be used for something else.

  • Are you right handed or left handed?

    Is the steam wand on your espresso machine on the right or left side? (this isn’t a huge issue, but can play a part in your workflow)

    Will you be consistently setting up in a space that would make one workflow better than the other?

  • Needs change? Different espresso machine? New barista?

    You can purchase the center top at any time in the future with an updated top layout.
