Sink and Hot Water Package

$825.00

Everything you need for a sink and hot/cold water faucet.

Seamlessly connects to HUB.

Designed for quick assembly and is easily transported.

This package does not include HUB and must be purchased in addition to the HUB Package.

Everything you need for a sink and hot/cold water faucet.

Seamlessly connects to HUB.

Designed for quick assembly and is easily transported.

This package does not include HUB and must be purchased in addition to the HUB Package.

Features

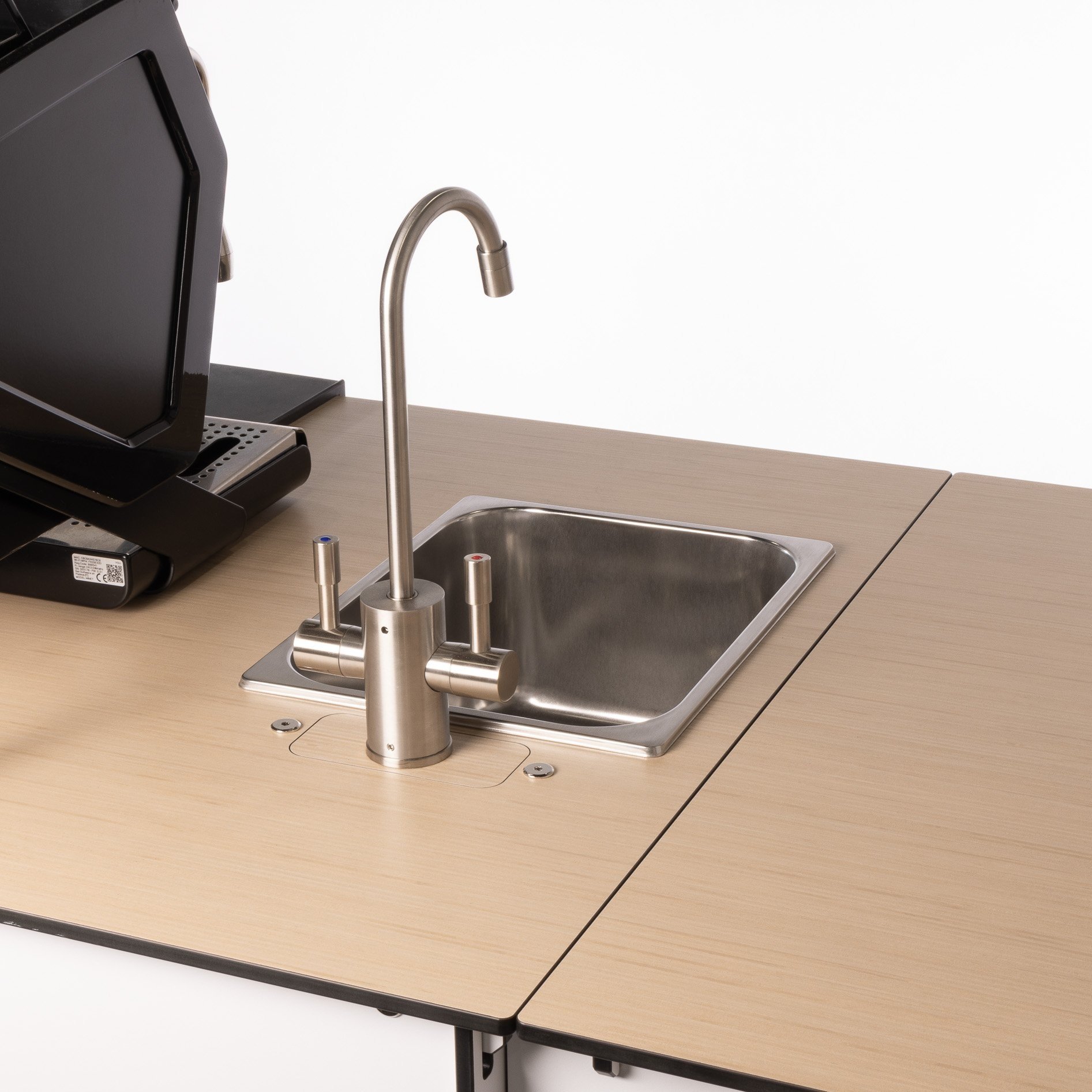

Hot/Cold Faucet and Stainless Sink

The faucet is pre-assembled and attached to a mounting plate. The sink is ready to use with a pre-installed drain assembly.

Water Heater

Small but mighty, this 1300 watt heater features a 2.5 quart reservoir and stainless steel construction. Adjustable water temp from 140°F to 200°F.

Simple Connection

Seamlessly connects to HUB and the waste water drain cap.

  • This package connects directly to HUB and includes all necessary components.

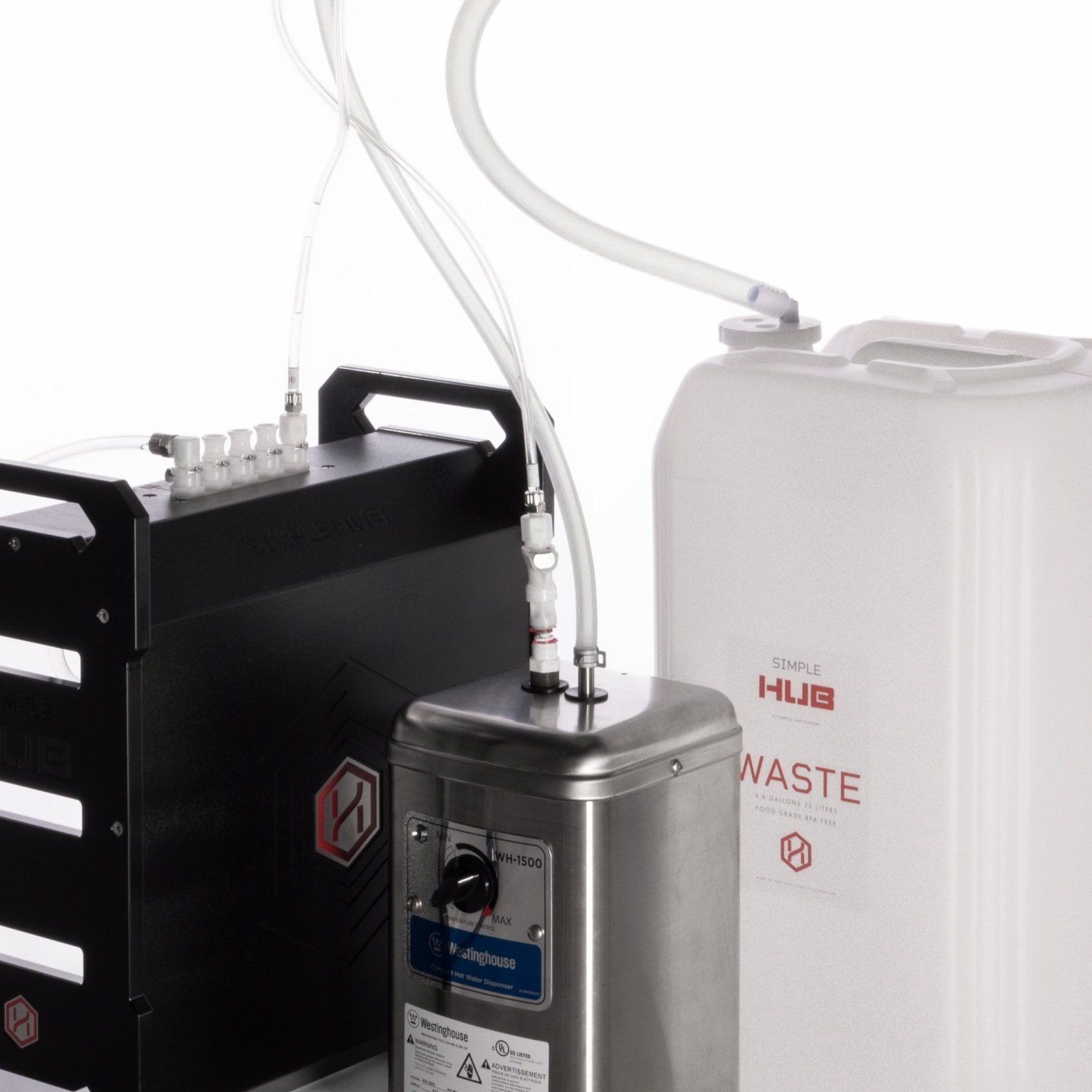

    HOT WATER HEATER

    The tank comes with the connection fittings pre-installed. A self-resetting thermal fuse prevents tank burnout in case of accidental dry startup. Water temperature is adjustable from 140 to 200 degrees Fahrenheit. The tank is not pressurized, which adds a level of user safety.

    FAUCET

    The brushed nickel dual handle hot and cold water faucet is fully assembled and attached to a mounting plate.

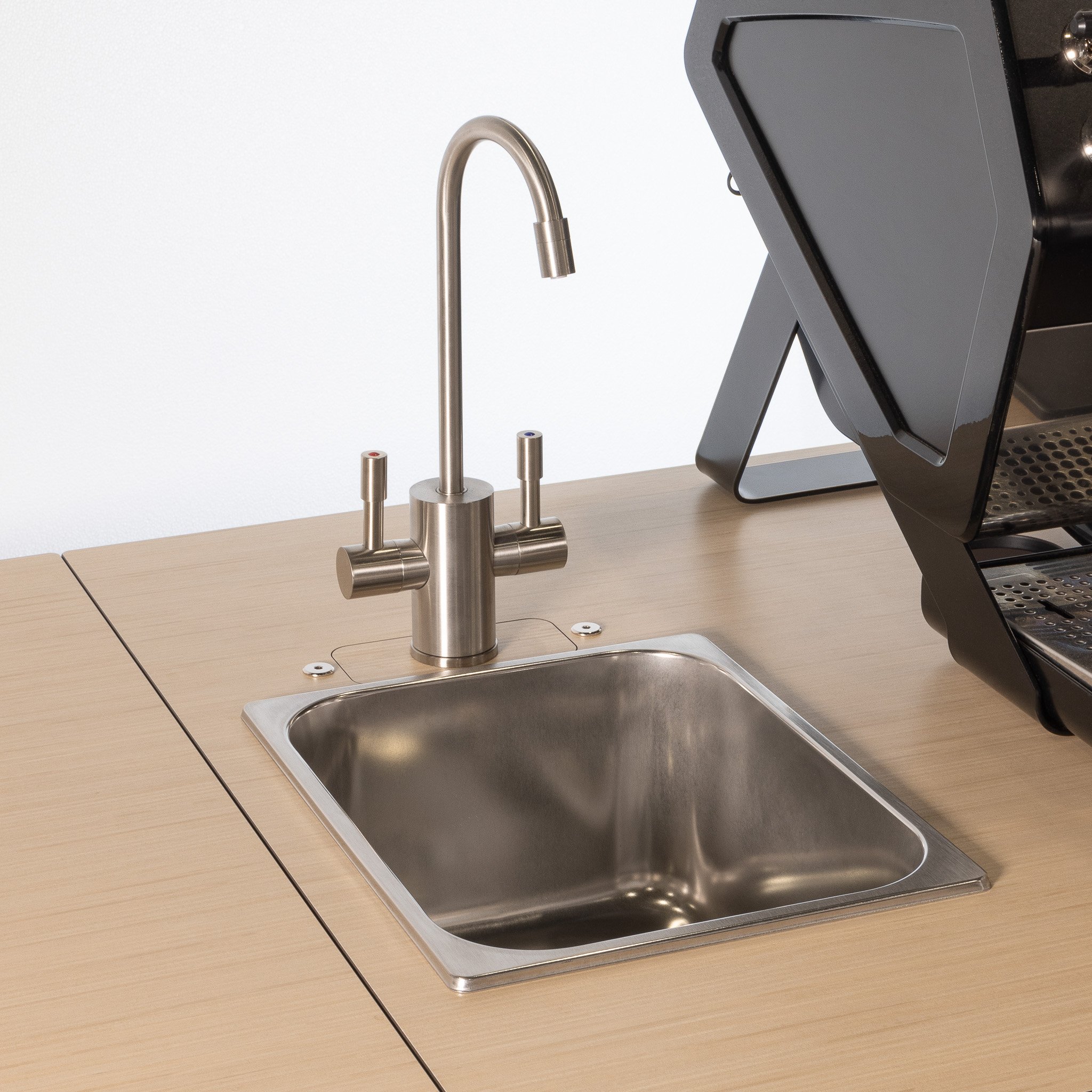

    SINK

    The sink is high quality stainless steel with pre-installed drain assembly.

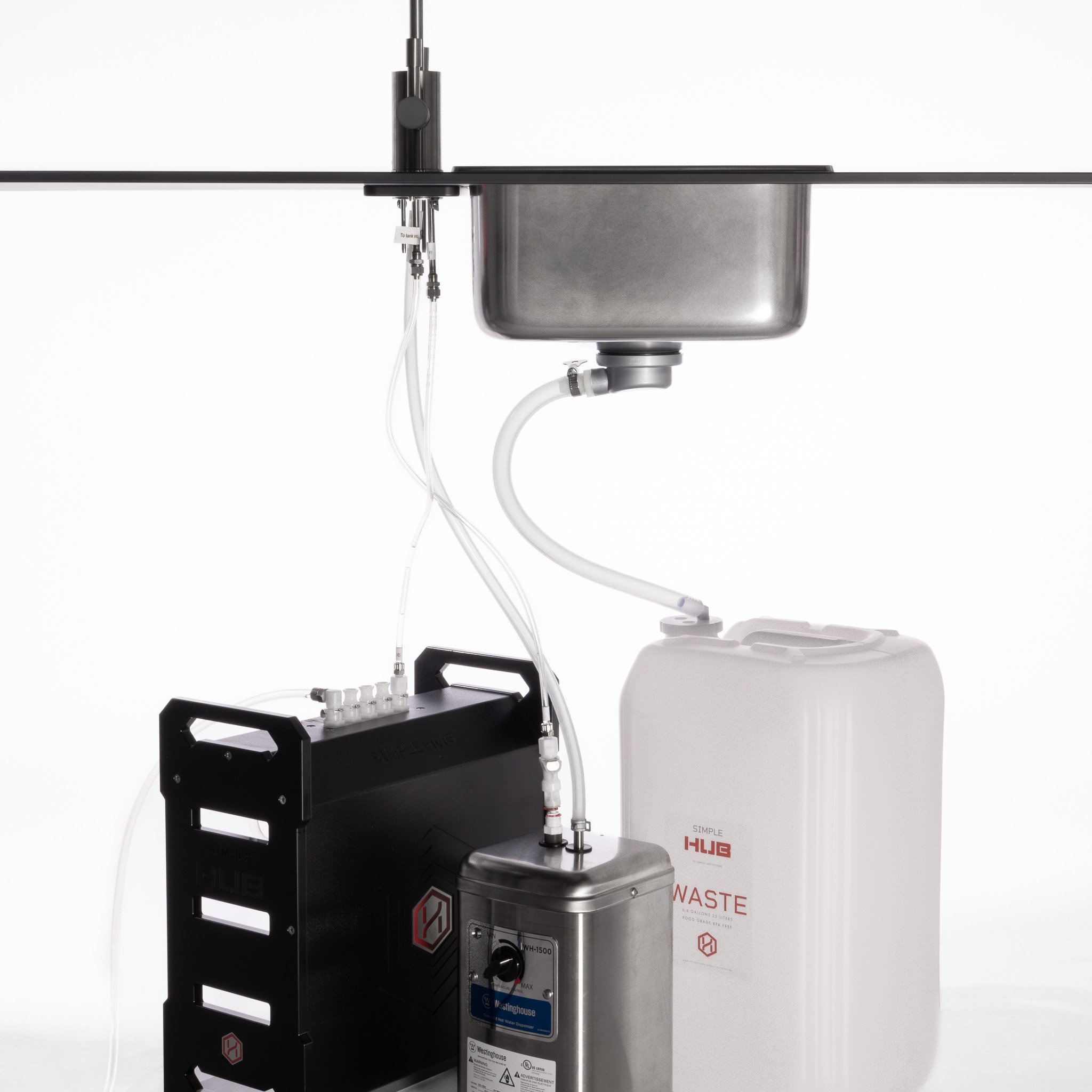

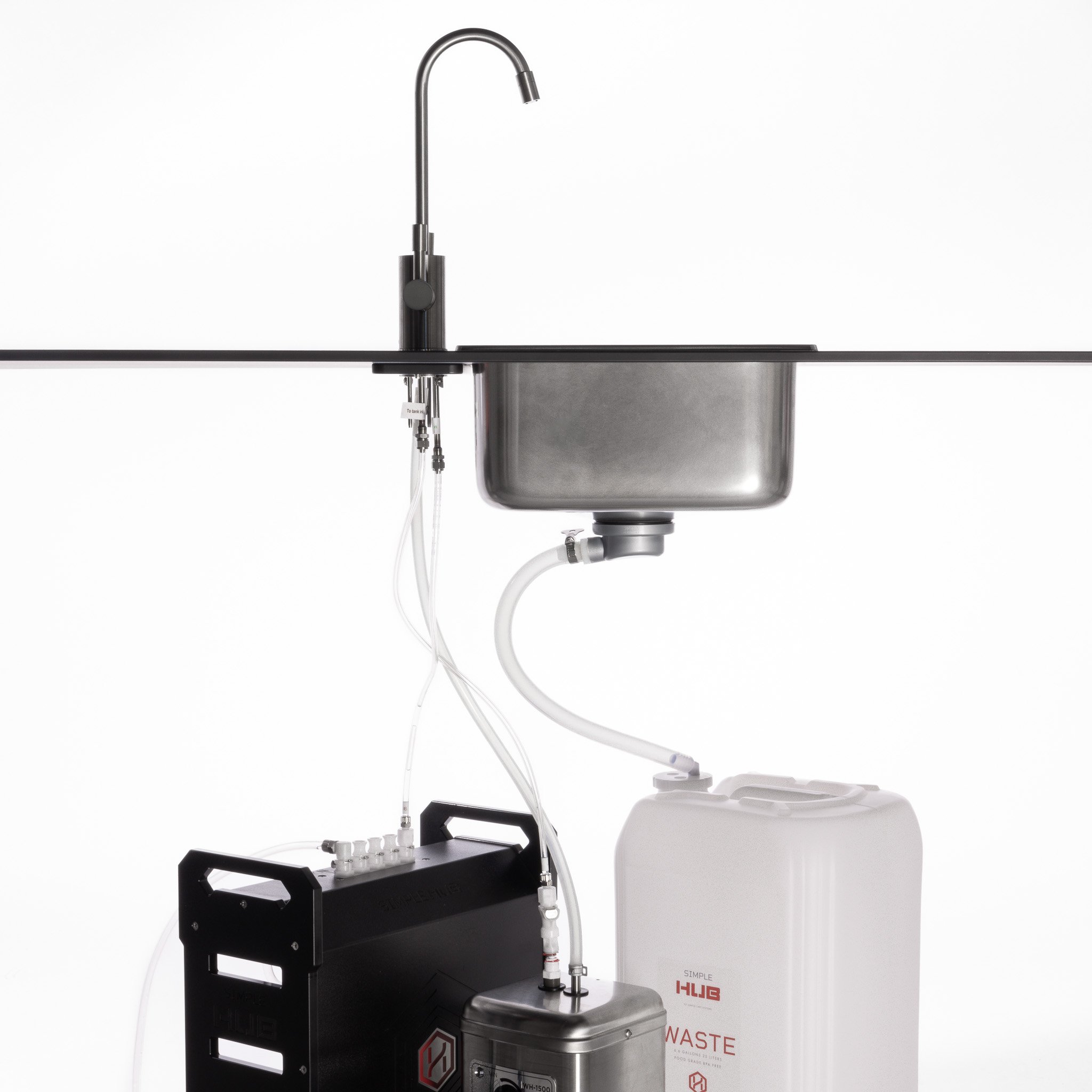

    CONNECTIONS

    All needed fittings are included and pre-assembled. The tubing is food grade silicone and NSF listed polyurethane ether based.

    Note: Top Layout 130 is required for this package.

  • HEATER

    Material: Stainless Steel

    Size: ‎6.7 x 6.3 x 10.7 inches

    Capacity: 2.5 quarts.

    Electrical: 1300 watts / 120VAC

    FAUCET

    Size: 11.5 x 4.6 inches

    Finish: Brushed Nickel

    SINK

    Material: Stainless Steel

    Overall Size: 10.3 x 12.6 x 6.5 inches

    Bowl Size: 9.4 x 11.8 x 6 inches

    Drain Diameter: 2.25 inches

    FRESH WATER CONNECTION

    Tubing Material: Silicone/Polyurethane NSF Listed Ether Based

    Fittings Material: Acetal/Stainless Steel/HDPE

    WASTE WATER CONNECTION

    Tubing Material: Silicone

    Fittings Material: HDPE

Package Q&A

  • No. You will only need to attach the faucet using your t-handle allen wrench, and make a couple water connections.

  • Because this is for a mobile setup, the capacity is less than what you would expect in a cafe. However, the heater can produce 60+ cups an hour, which is sufficient for most mobile requirements.
