Top Hole Layout

Page is under construction. Pardon our appearance!

These top hole layouts have been tested and proven in the industry. A top hole configuration must be included with your cart order. The cutouts are sized for the rinser, knockbox, and sink/faucet.

Rinser, Knockbox, Cord/Hose

• 100- cord/hose center

• 105- rinser and knockbox on right, cord/hose center

• 110- rinser and knockbox on left, cord/hose center

• 115- rinser on right, knockbox on left, cord/hose center

• 120- rinser on left, knockbox on right, cord/hose center

Sink/Faucet, Rinser, Knockbox, Cord/Hose

• 130- rinser and knockbox on right, cord/hose center, sink/faucet on left

• 135- rinser and knockbox on left, cord/hose center, sink/faucet on right

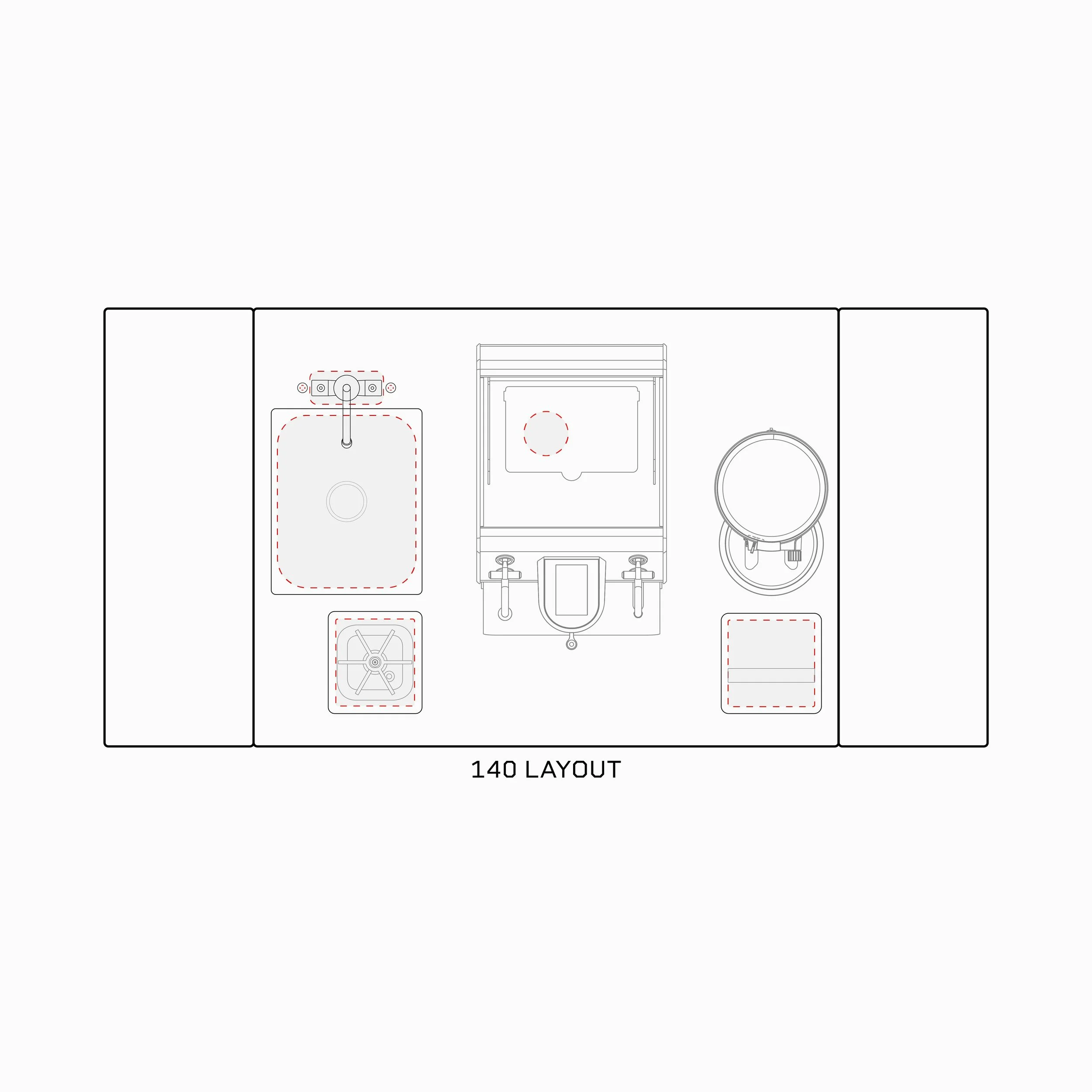

• 140- rinser and sink/faucet on left, cord/hose center, knockbox on right

• 145- rinser and sink/faucet on right, cord/hose center, knockbox on left

Special Layouts

• 150- rinser and sink/faucet on left, cord/hose, knockbox on right (optimized for Sanremo Zoe or similar)

• 155- rinser and sink/faucet on right, cord/hose, knockbox on left (optimized for Sanremo Zoe or similar)

• 160- rinser and sink/faucet on left, cord/hose, (optimized for La Marzocco 2 group or similar)

• 165- rinser and sink/faucet on right, cord/hose, (optimized for La Marzocco 2 group or similar)

• 180- rinser, sink/faucet, knockbox, cord/hose, 3 compartment sink

Custom Configurations

• Eliminating a cutout- We can eliminate a cutout from any of our standard layouts. Additional cost: $50 (invoiced separately, requires a standard layout as a base)

• Placement tweaks- We can usually shift the standard cutouts within the layout. Additional cost: $100 (invoiced separately, requires a standard layout as a base)

• Custom hole size and placement- It’s your canvas. Tell us your vision. (Purchase the custom layout option and we’ll reach out for more information)
