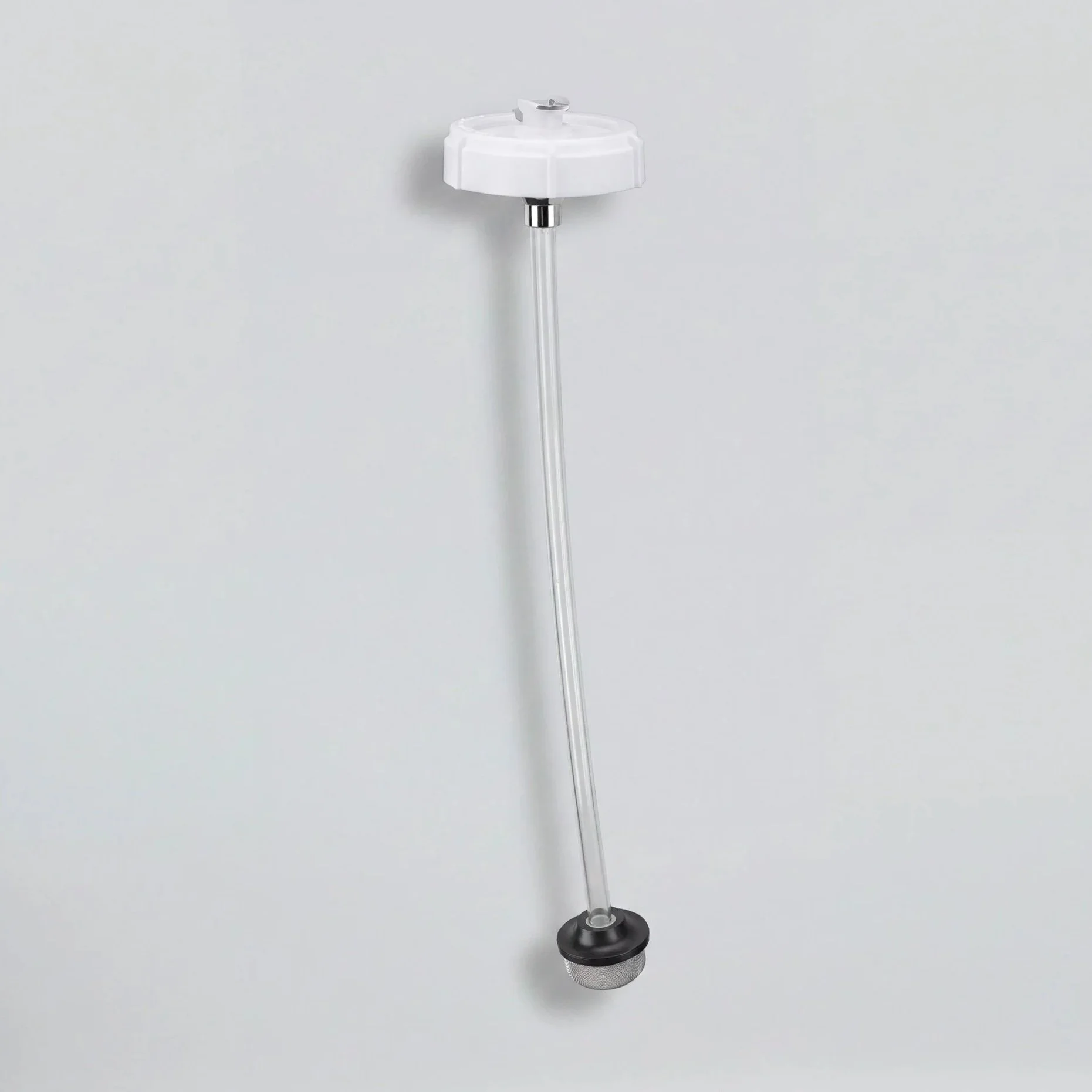

Suction tube with integrated connection port and flexible design.
Features
This suction tube is only compatible with our Fresh Water Tank.
Leak proof cap design means you can leave the suction tube in the tank when transporting.
Fit out all of your fresh water tanks with suction tubes so you can do a quick tank swap during service.
Length from beneath cap to the end of strainer: 14"
Specifications

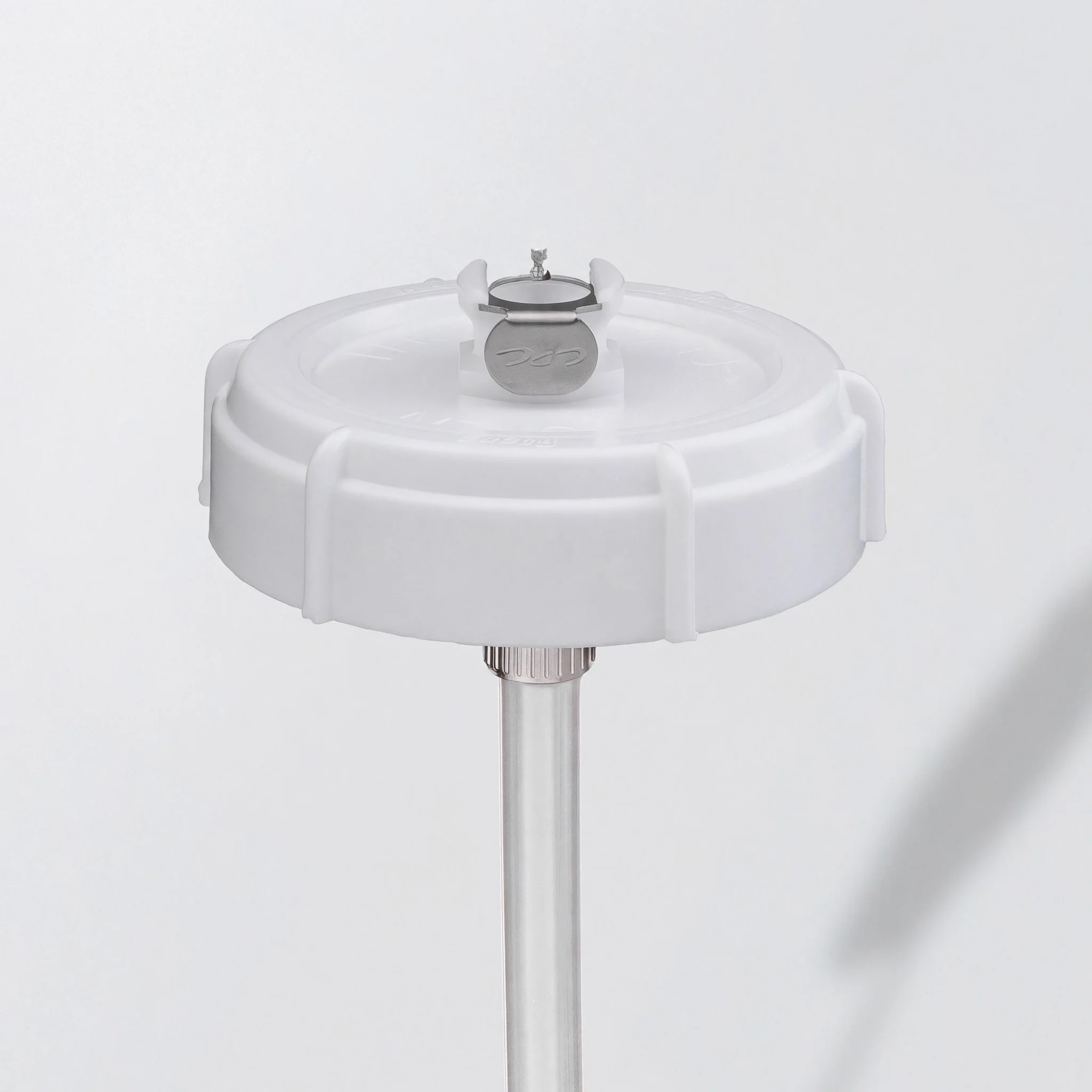

Cap
Thread size: 70 mm, 6 threads per inch (6 TPI)
Material: Polyethylene (PE)
Color: White
Gasket: EPDM
Overall diameter: 3.32"
Fitting:
3/8" PTF connection
Valved quick-disconnect design
Acetal construction
Buna-N seal
316 stainless steel valve spring
Tubing:
Material: Ether-based polyurethane
Color: Clear
Inside Diameter: 1/4"
Outside Diameter: 3/8"
Wall Thickness: 1/16"
Certifications: FDA-compliant material; NSF/ANSI/CAN 61 listed
Features: Plasticizer- and phthalate-free; UV and weather resistant
Strainer
Material: PVC, Stainless Steel
Shipping and Leadtime
In stock and ready to ship.
Visit our Lead Time page for the most current shipping information.
End
