HUB Package
With HUB at the core, this package has what you need to make mobile simple.
The water and electrical components are included in this package, as well as the optional espresso machine connection.
The Sink and Hot Water Package is an additional option and must be purchased separately.
With HUB at the core, this package has what you need to make mobile simple.
The water and electrical components are included in this package, as well as the optional espresso machine connection.
The Sink and Hot Water Package is an additional option and must be purchased separately.
With HUB at the core, this package has what you need to make mobile simple.
The water and electrical components are included in this package, as well as the optional espresso machine connection.
The Sink and Hot Water Package is an additional option and must be purchased separately.
In the Package
The HUB
With high volume capacity, multiple connection ports, and compact footprint, HUB is the center of the cart universe.
Fresh Water
Premium fittings and durable NSF approved tubing create a safe and clean water system.
Waste Water
The custom designed drain cap makes it easy to swap tanks without making a mess.
Electrical
Heavy duty components with overload and surge protection to keep your equipment running safely.

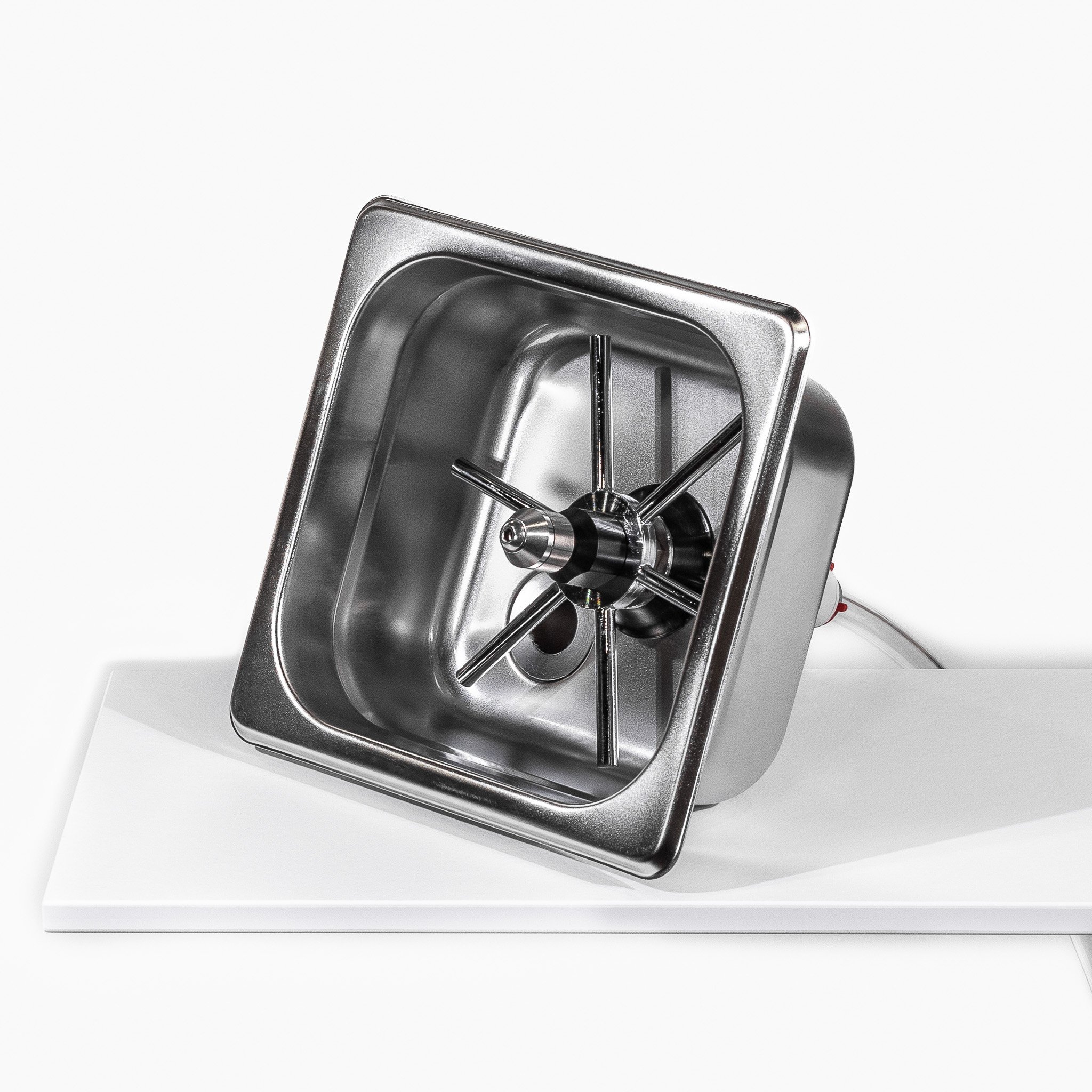

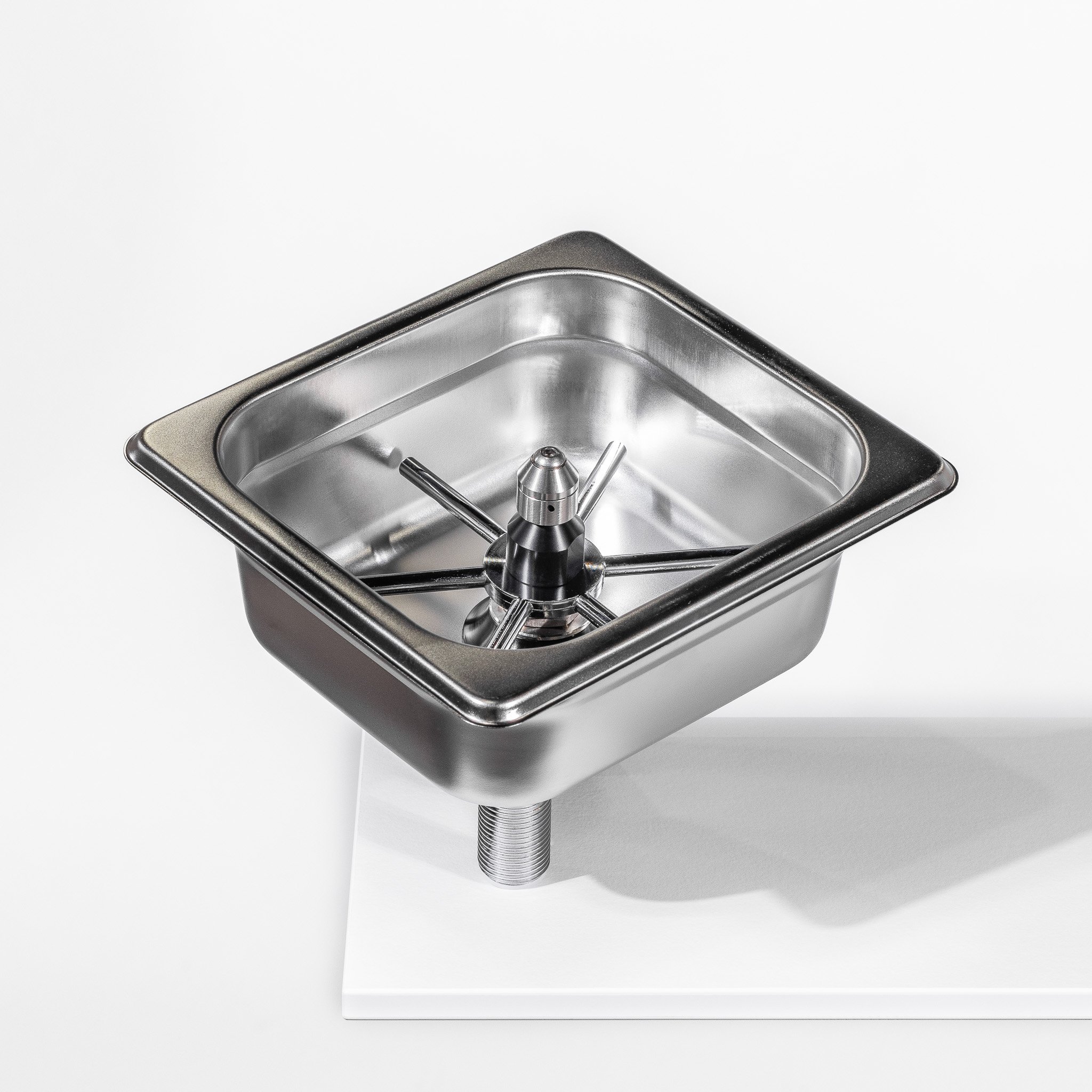

Spinjet Pitcher Rinser
This compact rinser sprays and spins at the same time for robust cleaning action. The rinser comes fully assembled with tubing attached.

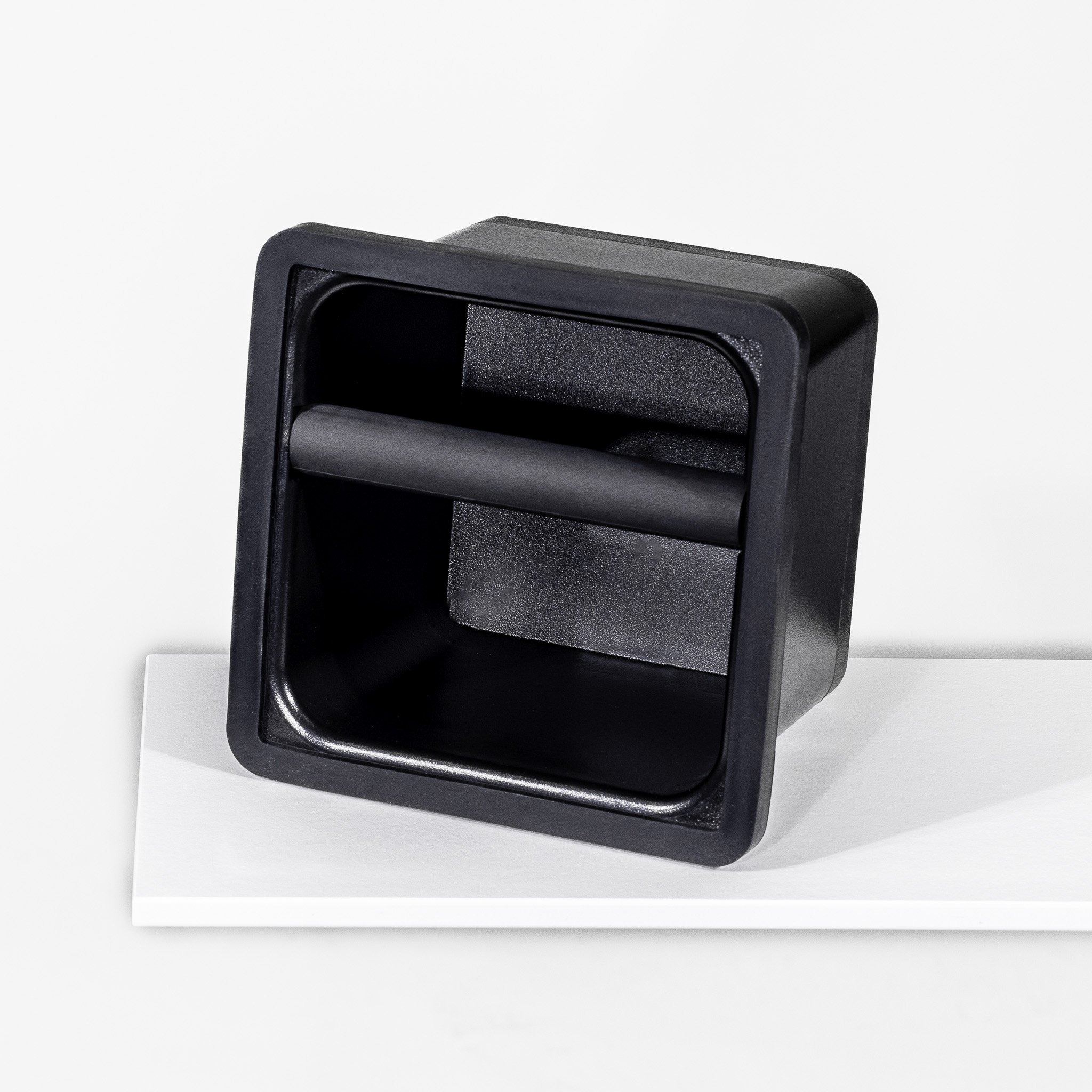

Knockbox
This knockbox is ultra strong and has a removable knock bar for easy cleaning.
Espresso Machine Connections
The connection kits include the fresh water HUB connection and drip tray drain components.
-
HUB
Capacity: 3.2 gpm
Pressure: 60 psi
Voltage: 115VAC
Warranty: 1 year
Tubing: NSF Approved Polyurethane Ether Based
Fittings: CPC Acetal Fittings with Internal Valves
Fresh Water Connection
5 Gallon Fresh Water Tank

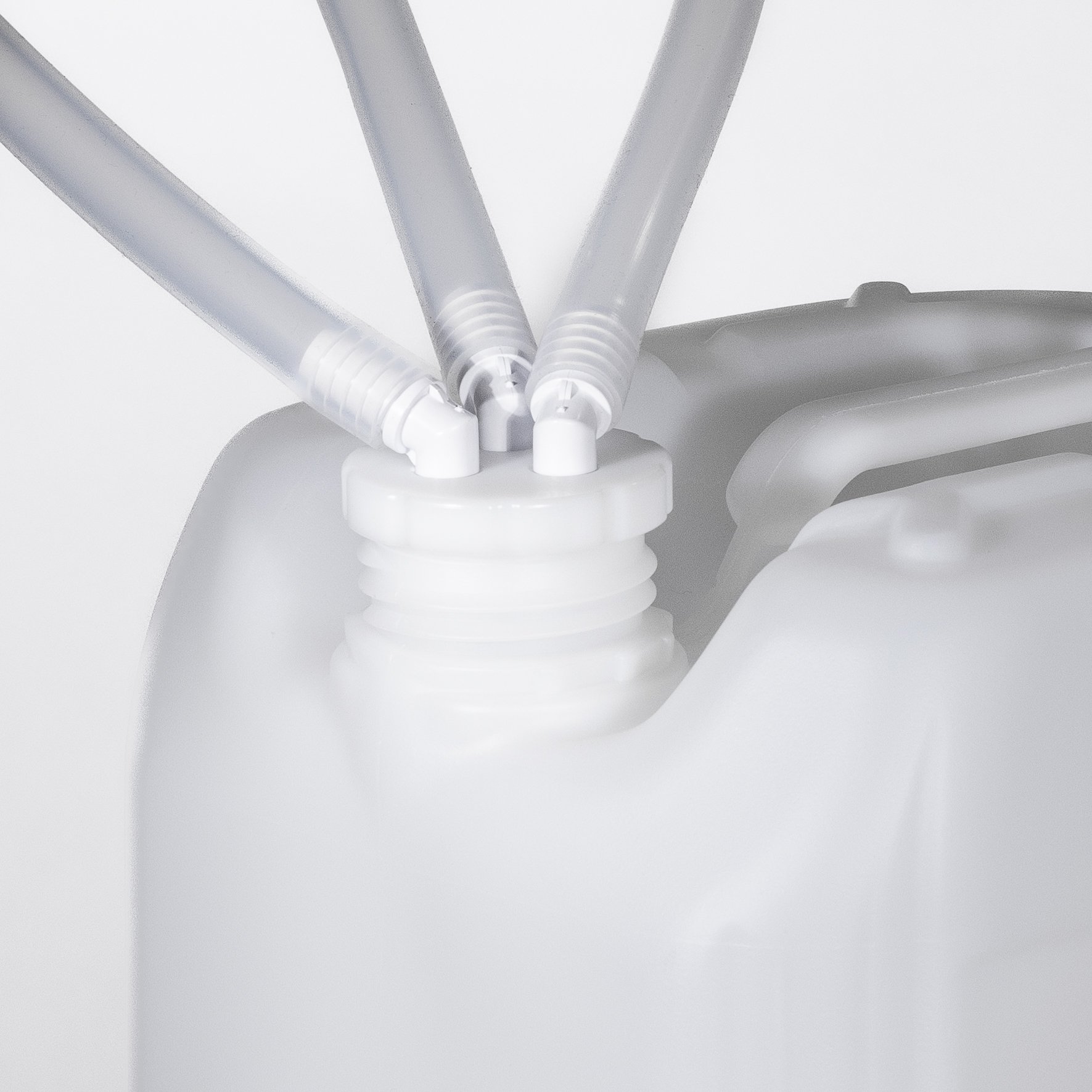

Suction Tube with integrated quick disconnect
Fresh Water Supply Tubing
Waste Water Connection
6.6 Gallon Waste Water Tank

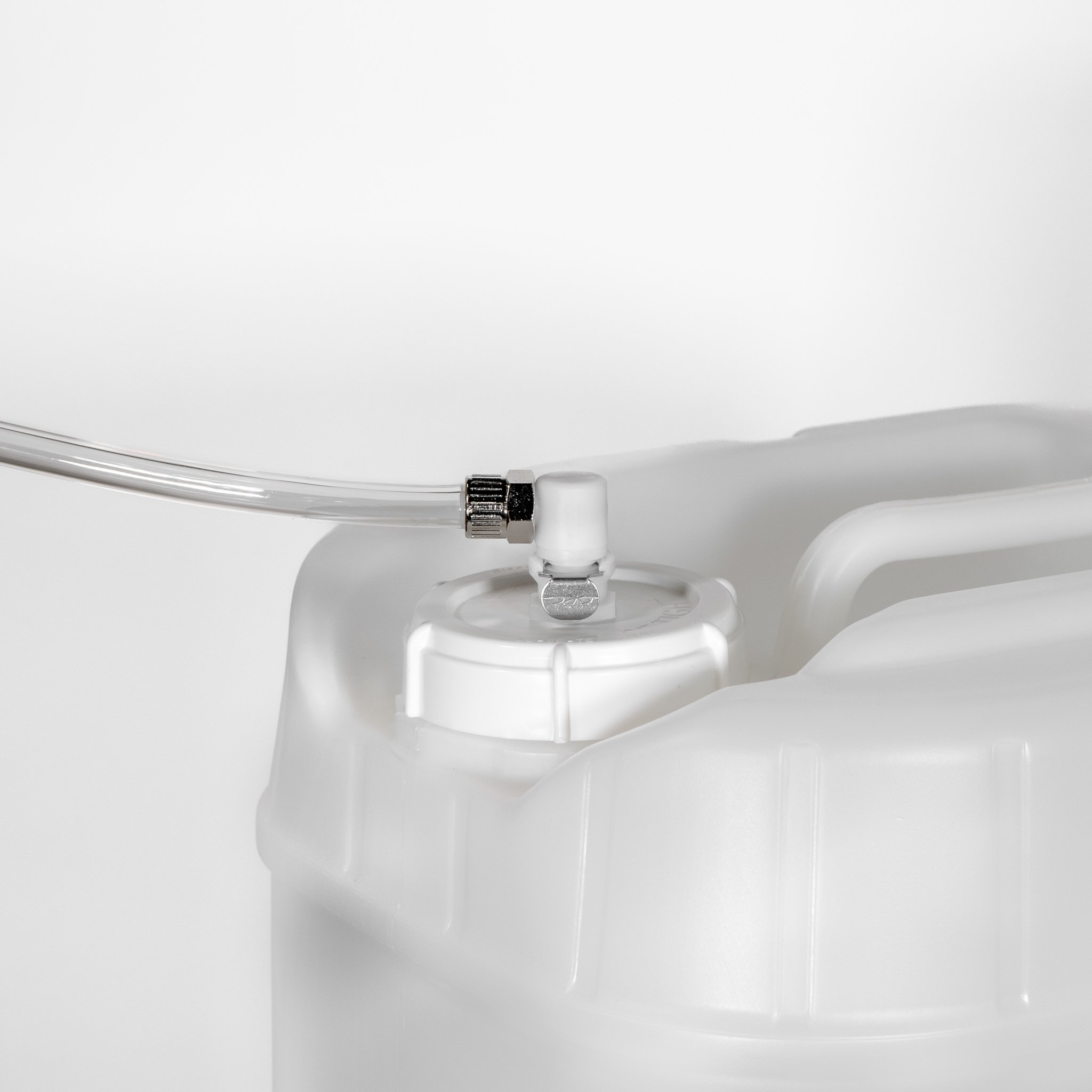

Waste Water Drain Cap

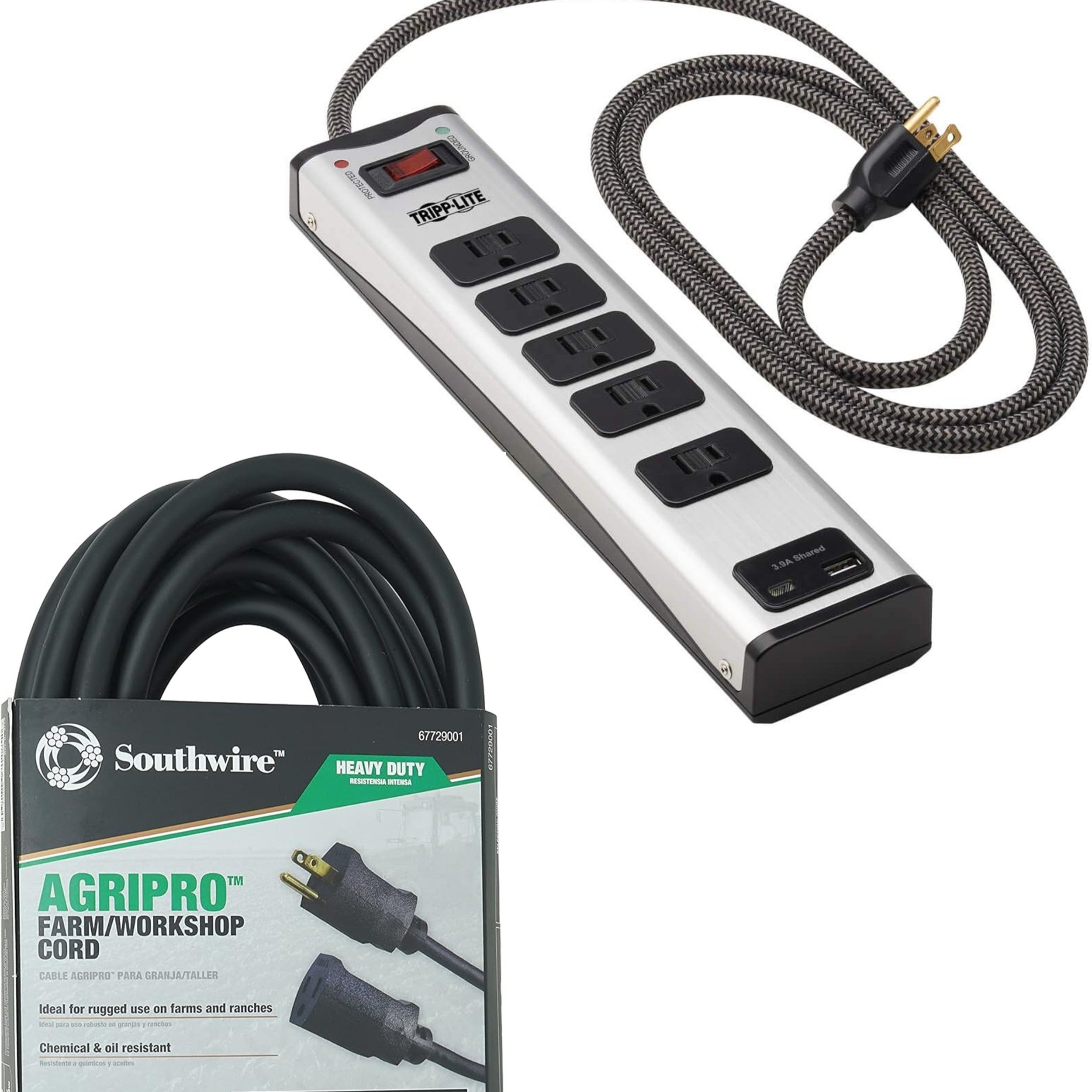

Electrical
Heavy Duty 15A 5 Outlet Power Block with overload and surge protection
Heavy Duty 12 Gauge 25’ Extension Cord

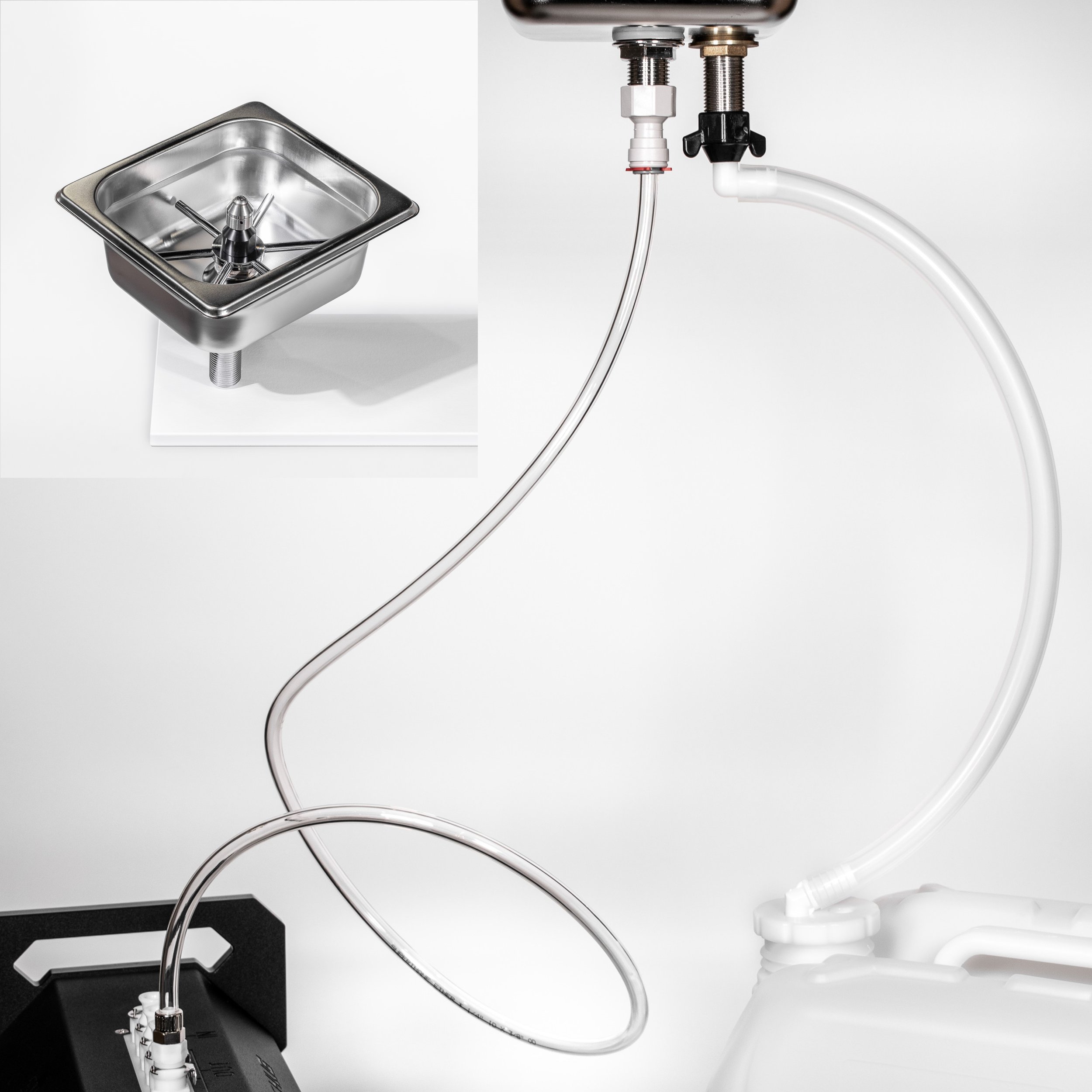

Pitcher Rinser
Rhino Spinjet Pitcher Rinser
Fresh Water Connection Tube and Fittings
Waste Water Connection Tube and Fitttings
Knockbox
Rubber Hush Gasket
Removable Knock Tube
Durable ABS construction
-

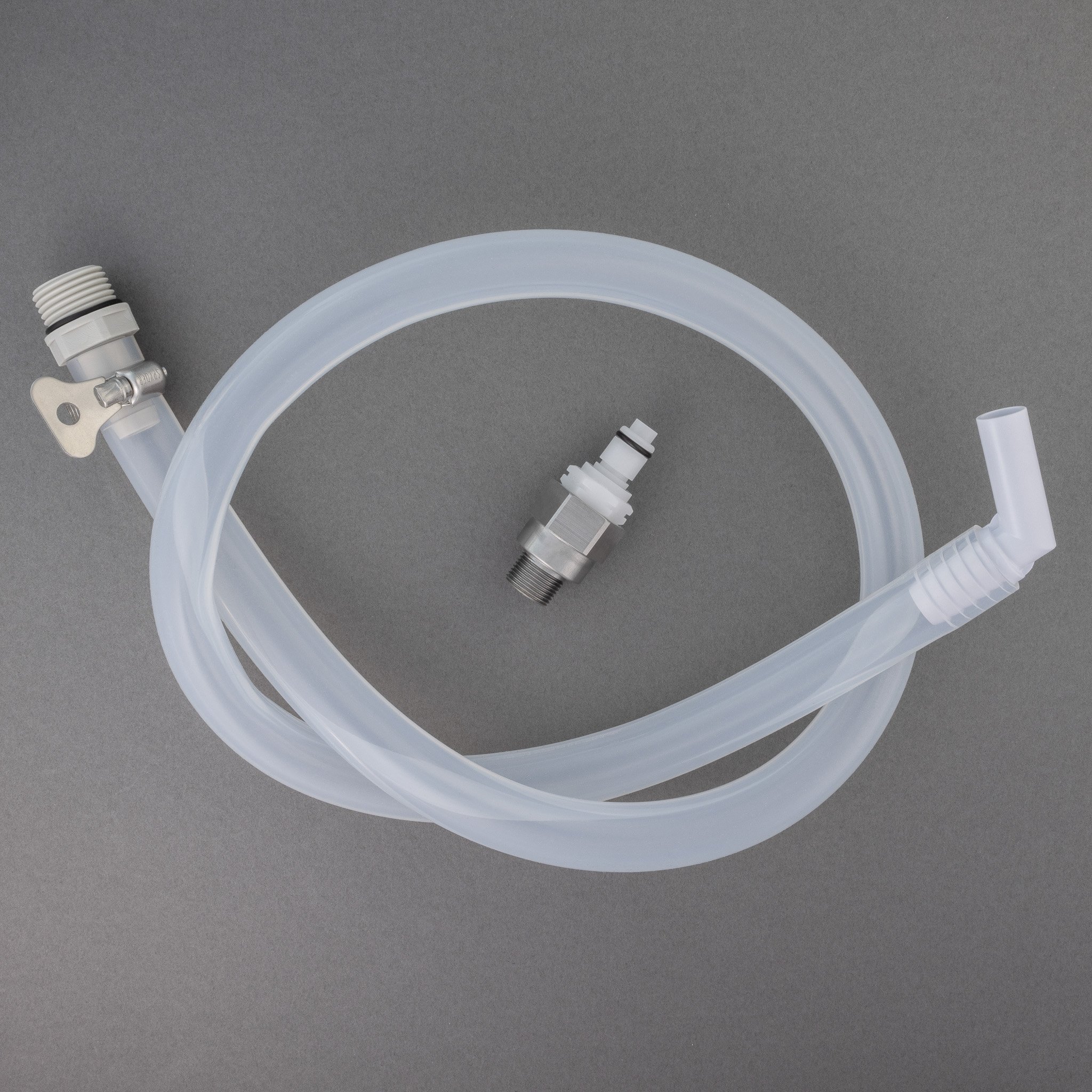

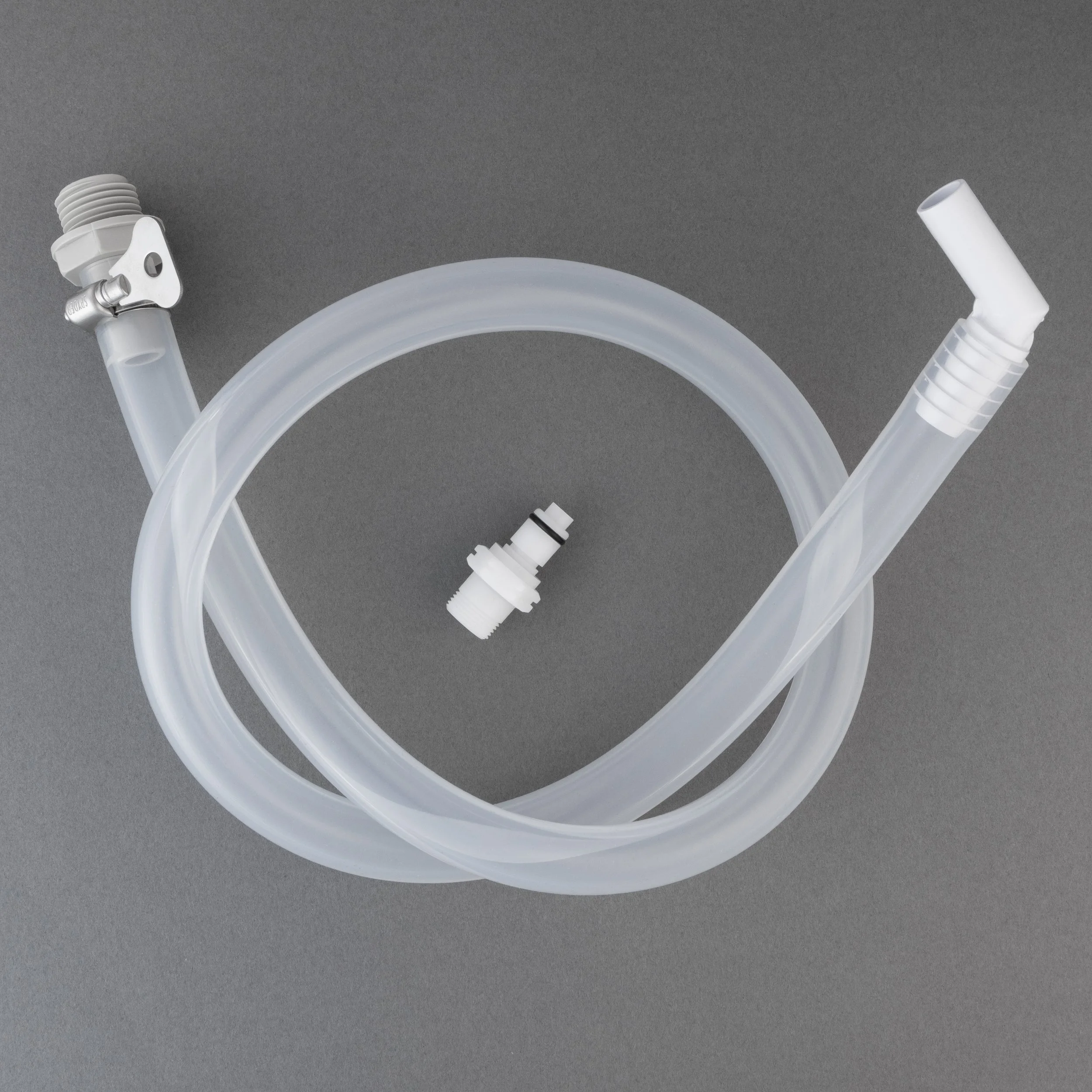

Linea Mini/GS3 Connection.
-3/8” HUB Compression Coupling
-Drip Tray Fitting
-Silicone Drain Tubing (34")
-Waste Tubing Clamp
-Waste Water Drain Spout
The Linea Mini requires a plumb-in kit sold by La Marzocco or authorized distributors.
Lucca A53 Direct Plumb
-Pressure Reducer Adapter (Limits input to 40 psi)
-Silicone Drain Tubing (34")
-Waste Water Drain Spout

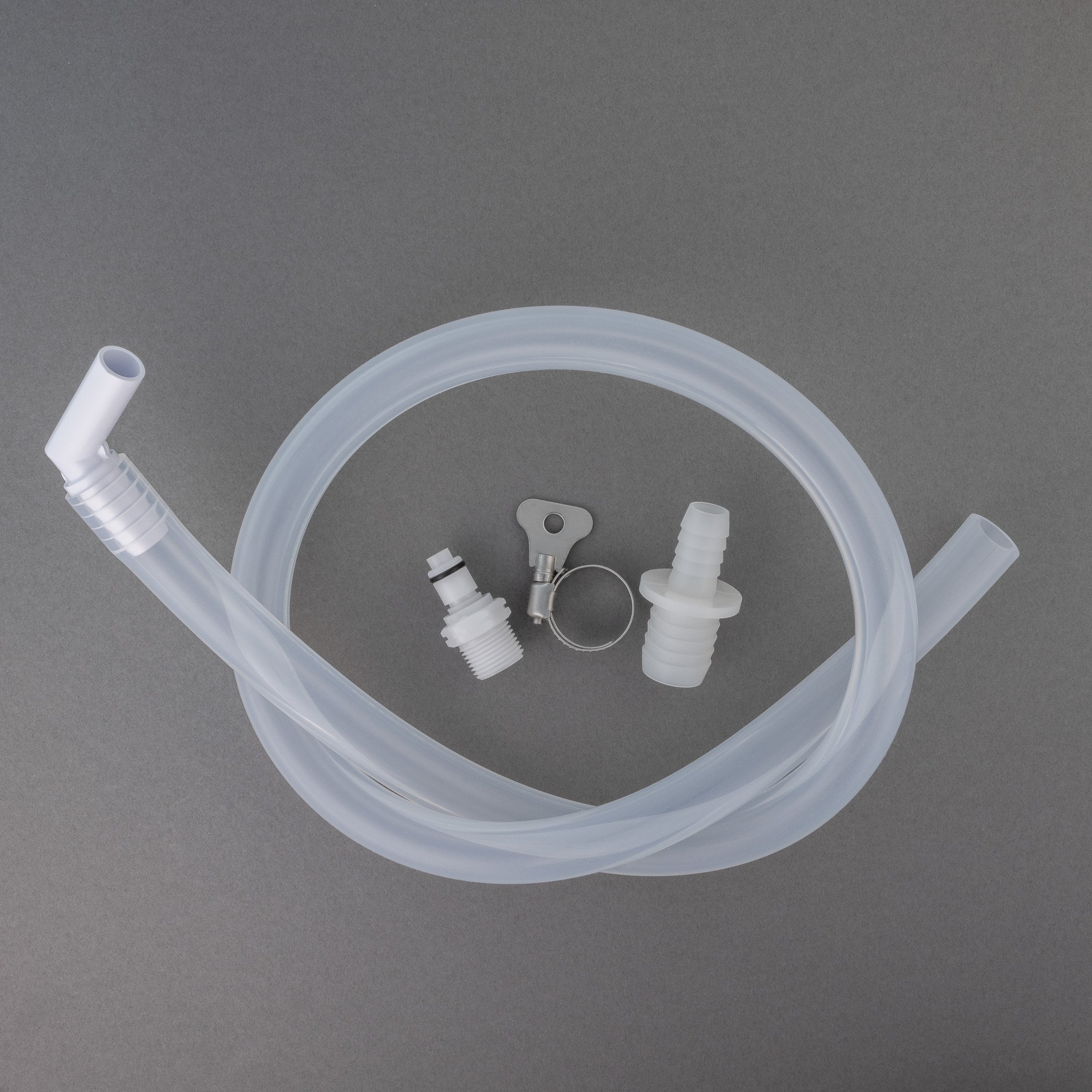

Rocket
-3/8” HUB BSP Coupling
-Silicone Drain Tubing (34")
-Waste Tubing Clamp
-Waste Tubing Adapter (3/4" x 1/2")
-Waste Water Drain Spout

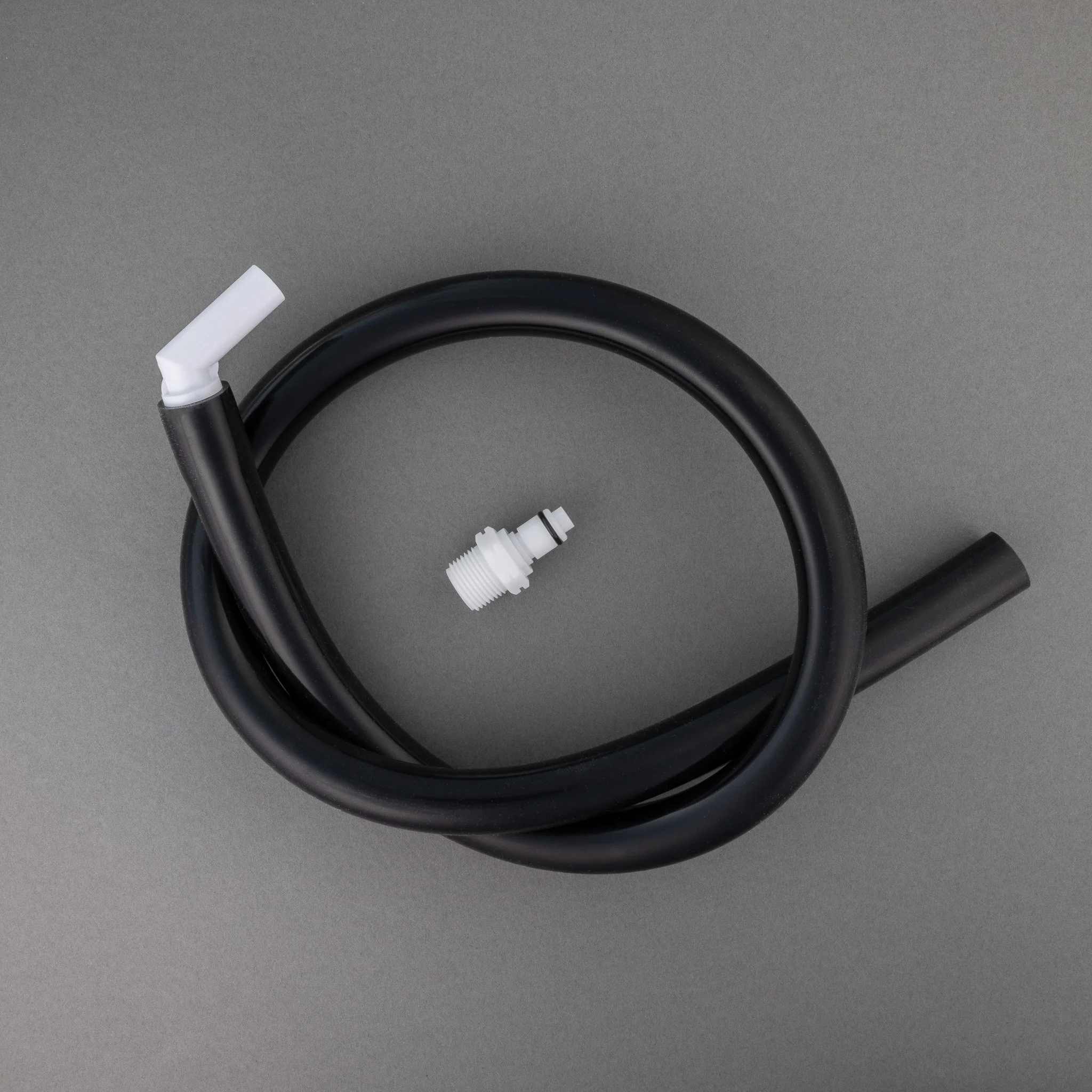

Sanremo YOU
-3/8” HUB BSP Coupling
-Black Silicone Drain Tubing (34")

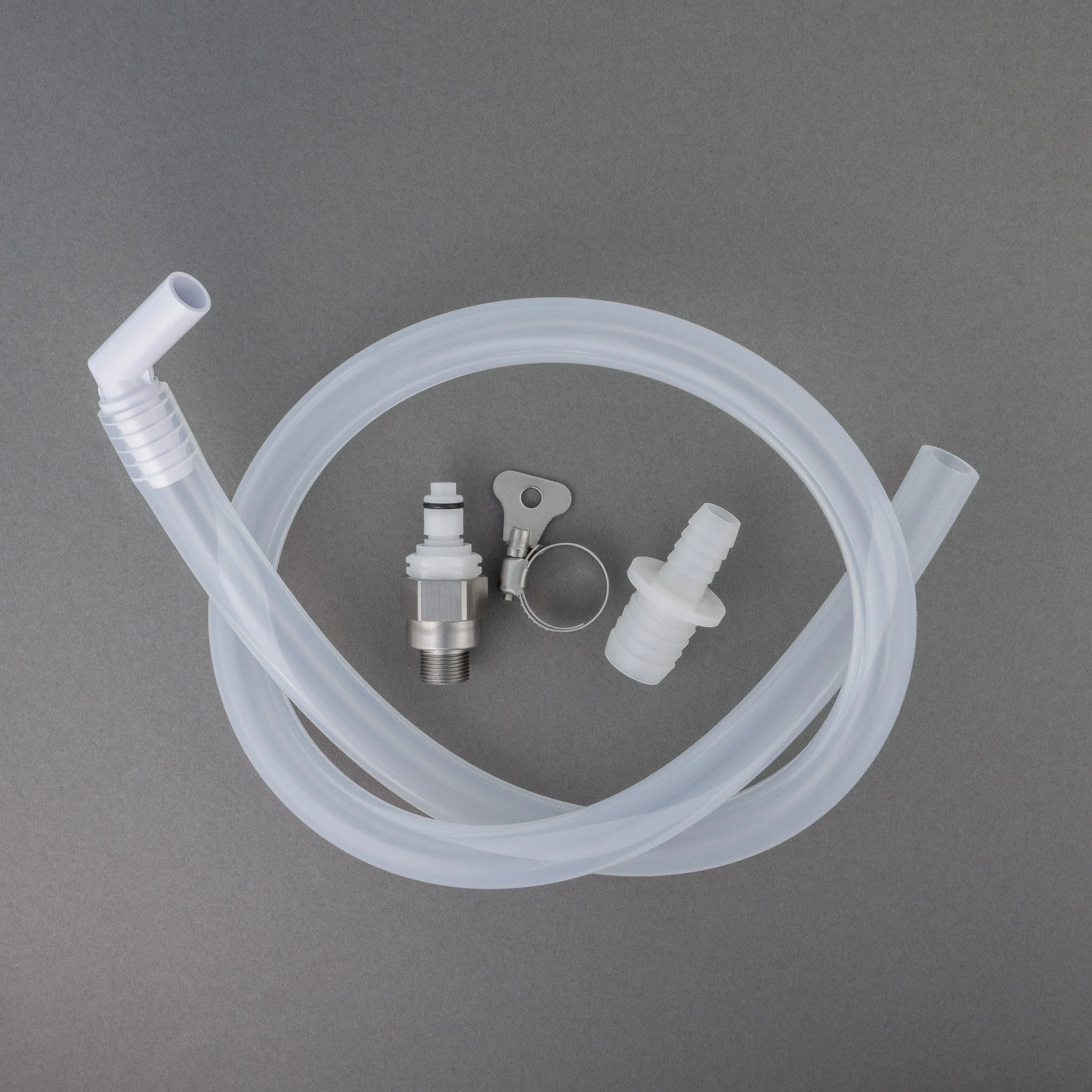

Slayer Single Group
-3/8” HUB Compression Coupling
-Silicone Drain Tubing (34")
-Waste Tubing Clamp
-Waste Tubing Adapter (3/4" x 1/2")
-Waste Water Drain Spout
Simonelli Appia Life
-3/8” HUB BSP Coupling
-Silicone Drain Tubing (34")
-Waste Tubing Clamp
-Waste Tubing Adapter (3/4" x 1/2")
-Waste Water Drain Spout

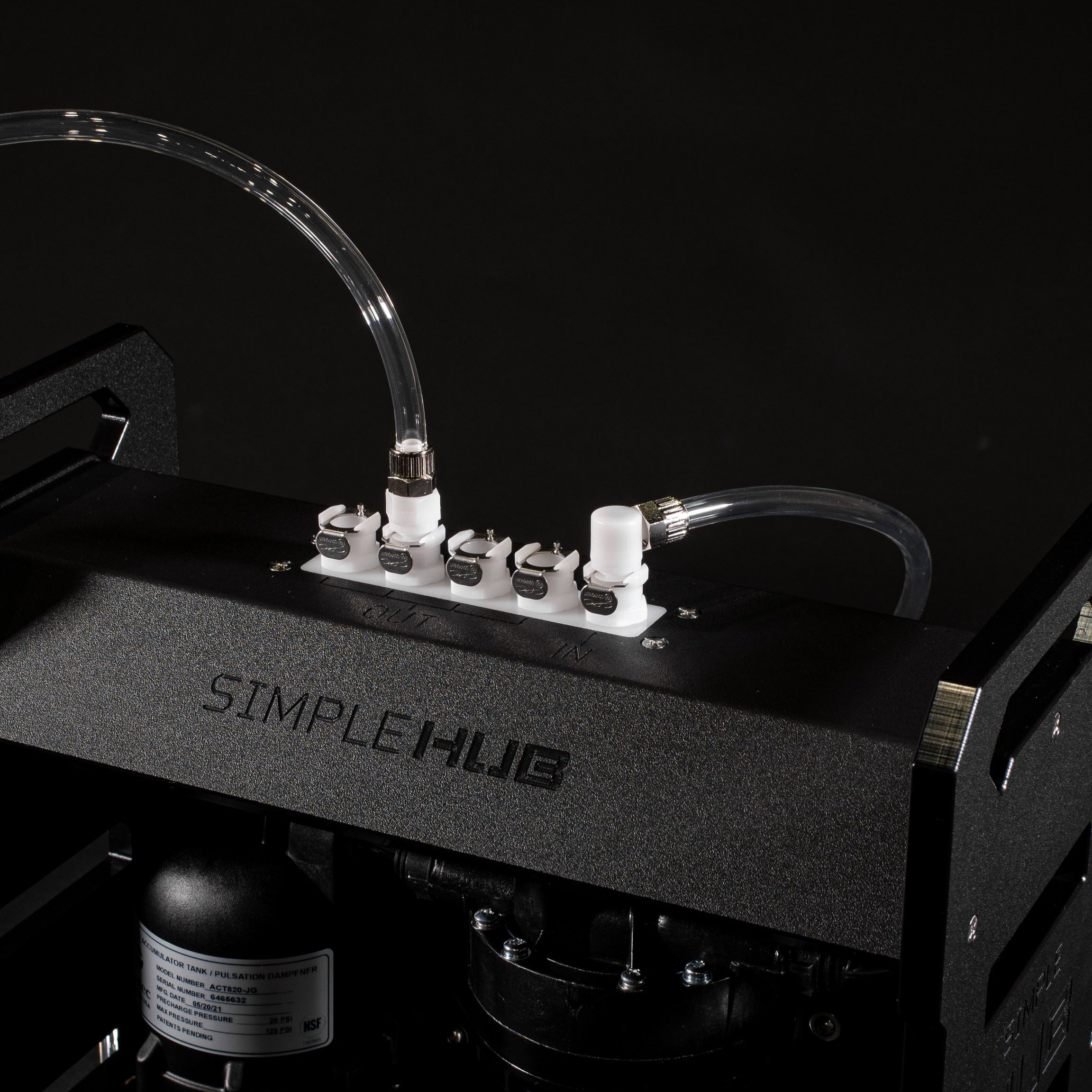

HUB Details
Quiet and high capacity pump is ideally sized for commercial equipment, but works equally well with small setups.
Quick-connect ports with built-in valves means you can plug or unplug tubing while the system is pressurized.
Valve fittings ensure contaminants don’t enter system when the tubing is unplugged.
The pump, accumulator, fittings, and tubing are made of NSF or FDA listed materials.

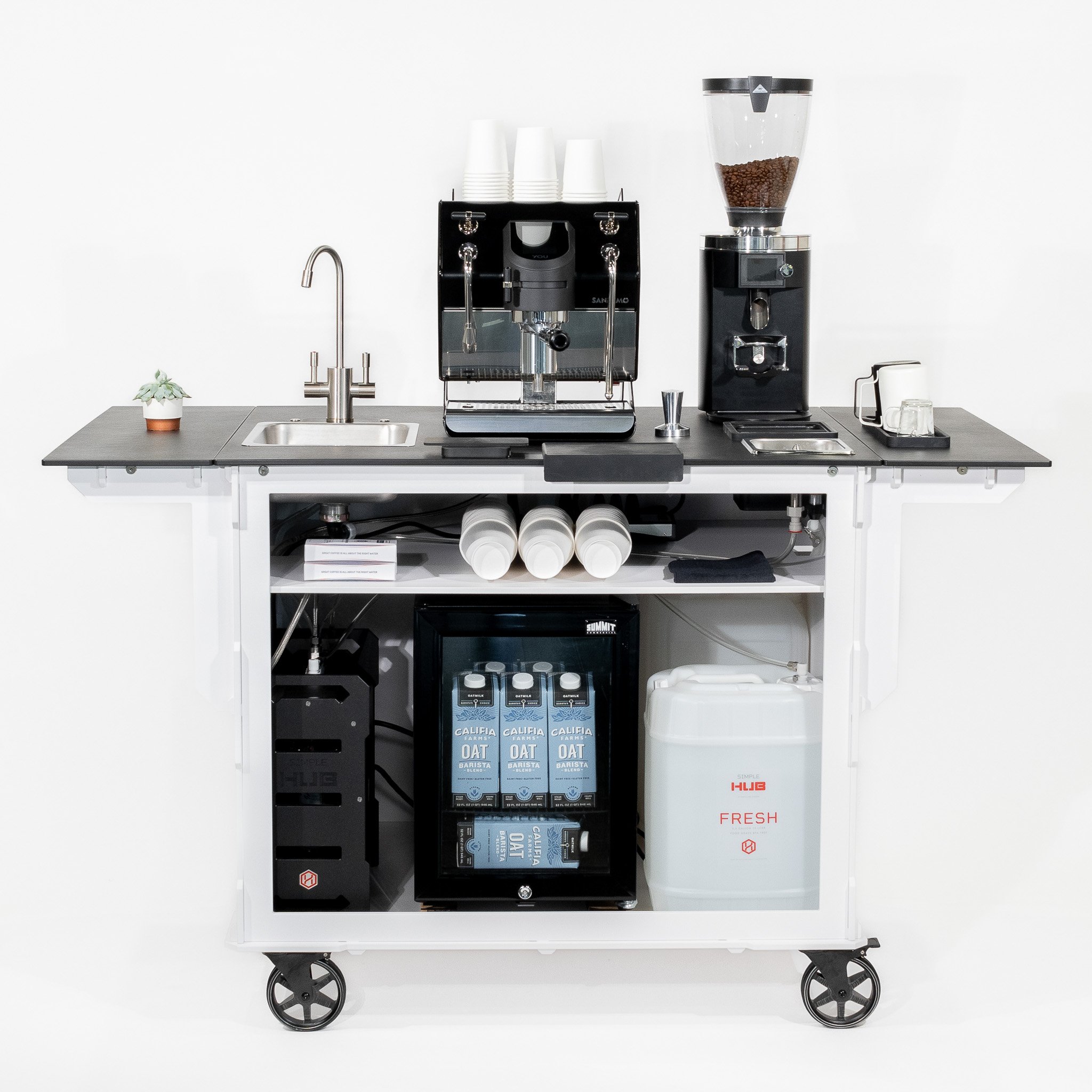

Small footprint, which leaves more space beneath the cart for a fridge or additional equipment.
Suction tube with quick-connect port mounted to tank cap allows you to change fresh water tanks quickly.
Waste water drain system with mess-free tank connection.
Package Q & A
-
This package will ship with your cart. We can ship the HUB package before your cart if requested.
-
The electrical capacity is 15A, which is the same as most standard wall outlets. This provides enough power for the simultaneous use of (most) single group espresso machines, a grinder, and HUB. For additional power, simply purchase an additional extension cord and plug it into a separate circuit. Your equipment requires the most electricity when heating, so be sure to allow them to heat separately to avoid overloading the circuit. We do recommend plugging your espresso machine into a dedicated circuit if possible.
-
Use a dedicated 220V cord and power source for your machine and use a standard 110V outlet to power the power block and/or other equipment.
-
Yes. HUB has a capacity of 3.2 gallons per minute at 60 psi, which is more than sufficient for larger machines. The only limitation will be the top hole layout, as a two group machine typically has a larger footprint.
-
To keep things as simple as possible, we recommend starting with filtered water (reverse osmosis preferred). This is a little more cost on the front end, but you don’t have to worry about consistency and changing filters. If using RO or distilled water, we recommend adding the Third Wave Water mineral packets to ensure maximum flavor.
-
While we do everything possible to make the package health code/food safety compliant, every county in every state has different requirements. That said, we do have fully inspected and approved systems nationwide.
The pump, accumulator, fittings, and tubing are made of NSF or FDA listed materials.
Note: If you will be using your cart for full service retail sales, most health codes require that you add the Sink and Hot Water Package.
