Included Components
-The HUB
-Fresh Water Supply Line (connects HUB to the Fresh Water Tank)
Optional Fresh Water Tank + Suction Tube
-5 Gallon Fresh Water Tank
-In-Tank Suction Tube Assembly with Integrated Supply Line Connection
Note: The Fresh Water Tank + Suction Tube option is required if you haven’t previously purchased them from Simple Cart Systems. HUB is not compatible with other fresh water tanks or containers. Additional Fresh Water Tanks and Suction Tube Assemblies can be purchased from our store.
-
HUB
Capacity: 3.2 gpm
Pressure: 60 psi
Voltage: 115VAC
Warranty: 1 year
HUB Frame: High Density Polyethylene
Tubing: NSF Approved Polyurethane Ether Based
Fittings: CPC Acetal Fittings with Internal Valves
Includes: Fresh Water Supply Connection
Fresh Water Tank + Suction Tube
5 Gallon Fresh Water Tank
Suction Tube with integrated quick disconnect
Features
The HUB
With high volume capacity, multiple connection ports, and compact footprint, HUB is the center of the cart universe.
Fresh Water
Premium fittings and durable NSF approved tubing create a safe and clean water system.
HUB Details
Quiet and high capacity pump is ideally sized for commercial equipment, but works equally well with small setups.

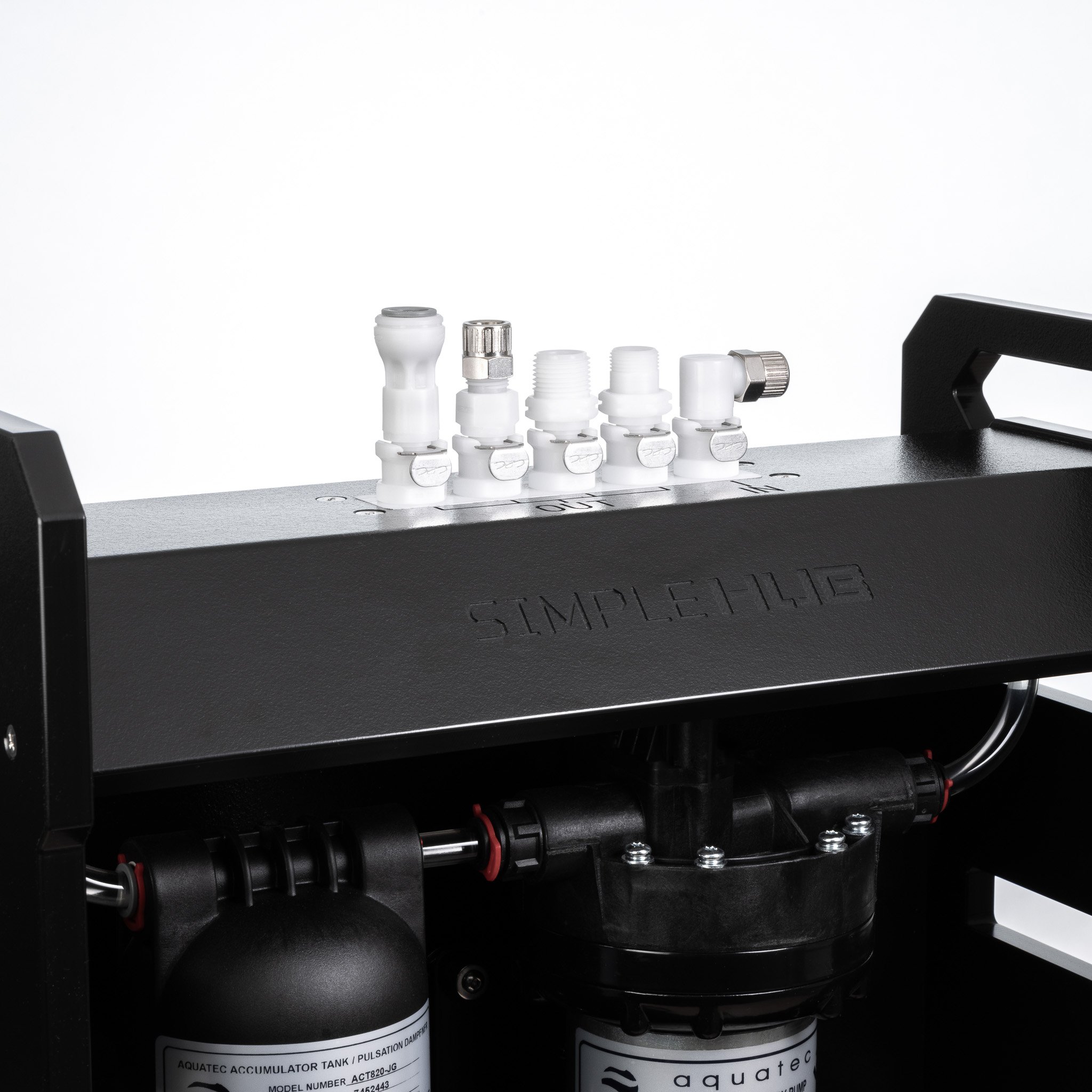

Quick-connect ports with built-in valves means you can plug or unplug tubing while the system is pressurized.
Valve fittings ensure contaminants don’t enter system when the tubing is unplugged.
The pump, accumulator, fittings, and tubing are made of NSF or FDA listed materials.

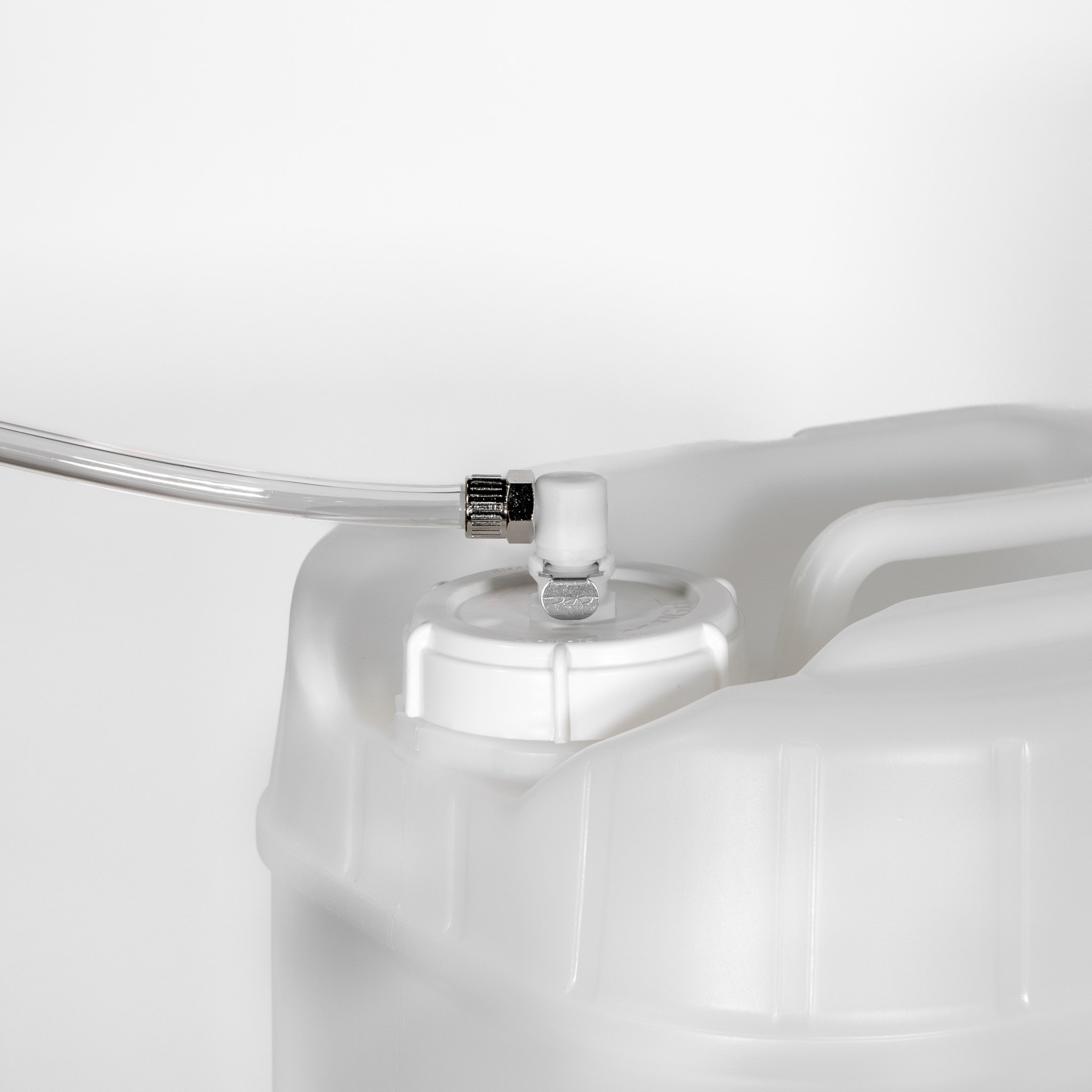

Suction tube with quick-connect port mounted to tank cap allows you to change fresh water tanks quickly.
HUB Q & A
-
To keep things as simple as possible, we recommend starting with filtered water (reverse osmosis preferred). This is a little more cost on the front end, but you don’t have to worry about consistency and changing filters. If using RO or distilled water, we recommend adding the Third Wave Water mineral packets to ensure maximum flavor.
-
We’ll soon offer a dedicated case option to protect the tubing during transport. Until then, any case will work, or you can use the accessory box that shipped with your HUB system.
-
Yes. HUB has a capacity of 3.2 gallons per minute at 60 psi, which is more than sufficient for larger machines. The only limitation will be the top hole layout, as a two group machine typically has a larger footprint.
